Coating Service Overview

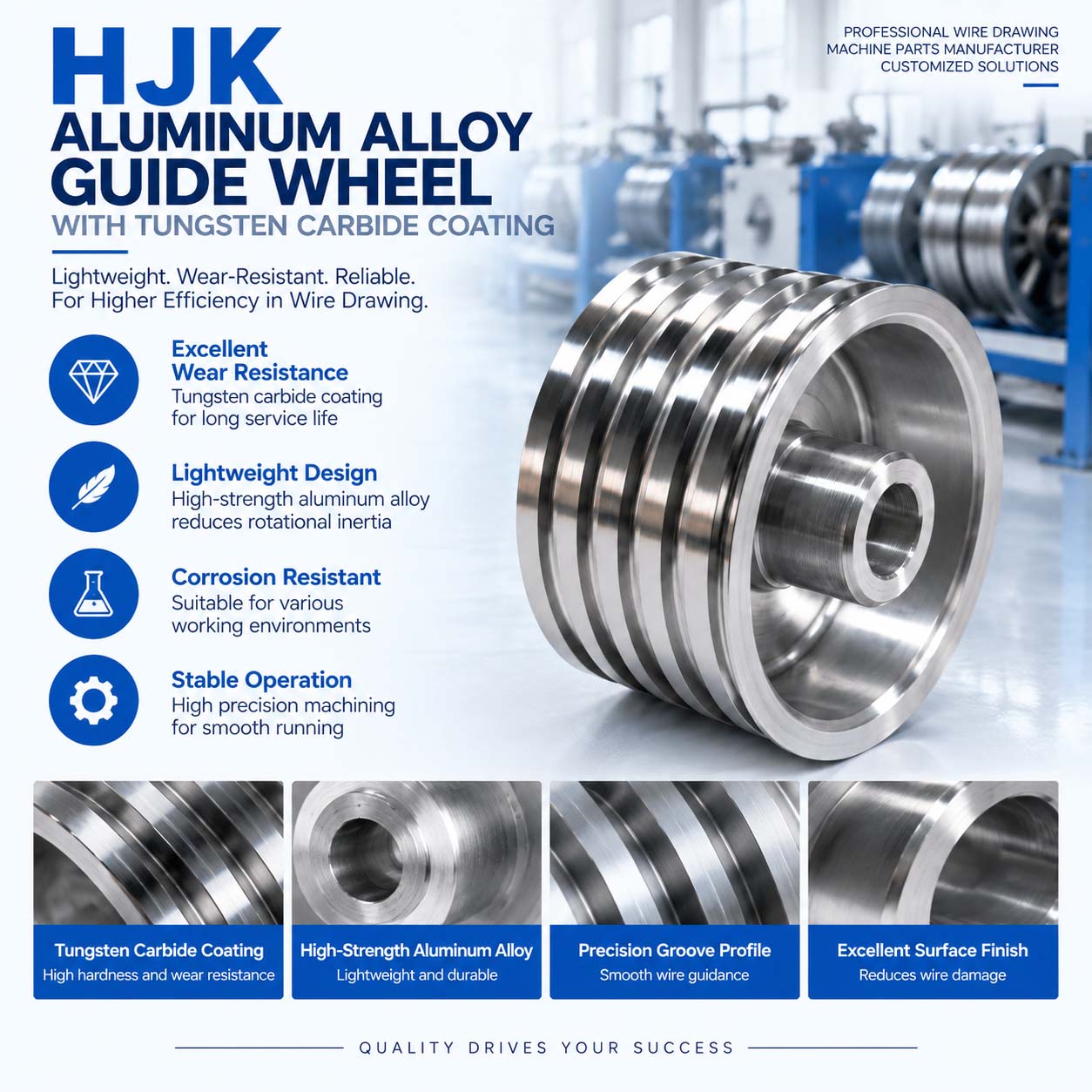

In wire and cable manufacturing, guide wheels are essential wear components used in wire drawing machines, stranding machines, extrusion lines, and take-up systems. Conventional steel guide wheels provide good wear resistance but are relatively heavy, while standard aluminum wheels are lightweight but wear faster. The HJK Tungsten Carbide Coated Aluminum Alloy Guide Wheel combines a lightweight aluminum alloy body with a wear-resistant tungsten carbide coating, providing an effective balance of low inertia, durability, and stable operation.
Product Features
The guide wheel consists of a high-strength aluminum alloy body and a tungsten carbide coated working surface.
- Lightweight Design: The aluminum alloy body significantly reduces overall weight and rotational inertia, making it suitable for high-speed production lines.
- Excellent Wear Resistance: Tungsten carbide coating on the groove surface provides high hardness and resistance to continuous wire friction.
- Smooth Wire Contact: Precision finishing helps reduce friction, scratches, and surface damage to the wire.
- Corrosion Resistance: The aluminum alloy body offers good corrosion resistance for demanding industrial environments.
- Stable High-Speed Operation: Lightweight construction helps reduce vibration and improves operating stability.
Typical Applications
HJK tungsten carbide coated aluminum guide wheels are suitable for a wide range of wire processing equipment, including:
- Medium, fine, and high-speed wire drawing machines
- Stranding and bunching machines
- Wire and cable extrusion lines
- Pay-off and take-up systems
- Copper, aluminum, alloy and stainless steel wire production
- Welding wire, spring wire and other metal wire processing lines
They can be used as guide wheels, tension wheels, or wire-routing components depending on machine configuration.
Selection Guide
When selecting a guide wheel, several parameters should be considered.
Wheel Diameter and Groove Profile: The wheel diameter should match the wire diameter and required bending radius. Common groove profiles include V-groove, U-groove, and flat-bottom designs.
Coating: Tungsten carbide coating thickness and surface finish can be selected according to wire material, operating speed, tension, and wear conditions.
Bearing Configuration: Bearings should be selected according to rotational speed, radial load, and operating environment to ensure smooth and reliable operation.
Installation Dimensions: Confirm the outer diameter, width, bore size, bearing dimensions, and other mounting specifications before ordering.
Custom dimensions and groove profiles can be manufactured according to drawings or samples.
Installation & Maintenance
Before installation, inspect the groove surface and make sure the coating is free from damage. The guide wheel should be properly aligned with the wire path to prevent uneven wear.
During operation:
- Regularly remove metal particles, oil, and other contaminants from the groove.
- Inspect the tungsten carbide coating for excessive wear or damage.
- Check bearings for abnormal noise, vibration, or resistance.
- Avoid impact on the coated working surface during installation and maintenance.
- Replace the wheel when the groove becomes excessively worn or the coating exposes the aluminum substrate.
Proper maintenance helps maintain stable wire guidance and extends service life.
FAQ
What are the advantages over conventional steel guide wheels?
The aluminum alloy body reduces weight and rotational inertia, while the tungsten carbide coating provides excellent wear resistance. This combination is particularly suitable for high-speed wire processing equipment.
Can it be used for stainless steel wire?
Yes. Tungsten carbide coated guide wheels can be used for stainless steel and other relatively hard wire materials. The coating specification should be selected according to the actual operating conditions.
When should the guide wheel be replaced?
Replacement is recommended when the groove shows significant wear, the coating is worn through, rotation becomes unstable, or scratches begin to appear on the processed wire.
Are customized sizes available?
Yes. Outer diameter, width, bore size, groove profile, coating specifications, and bearing configuration can be customized according to customer drawings, samples, or technical requirements.
What information is required for a quotation?
Please provide the drawing or sample, dimensions, wire material and diameter, operating speed, quantity, and coating requirements. This allows us to recommend the appropriate specification and provide an accurate quotation.
