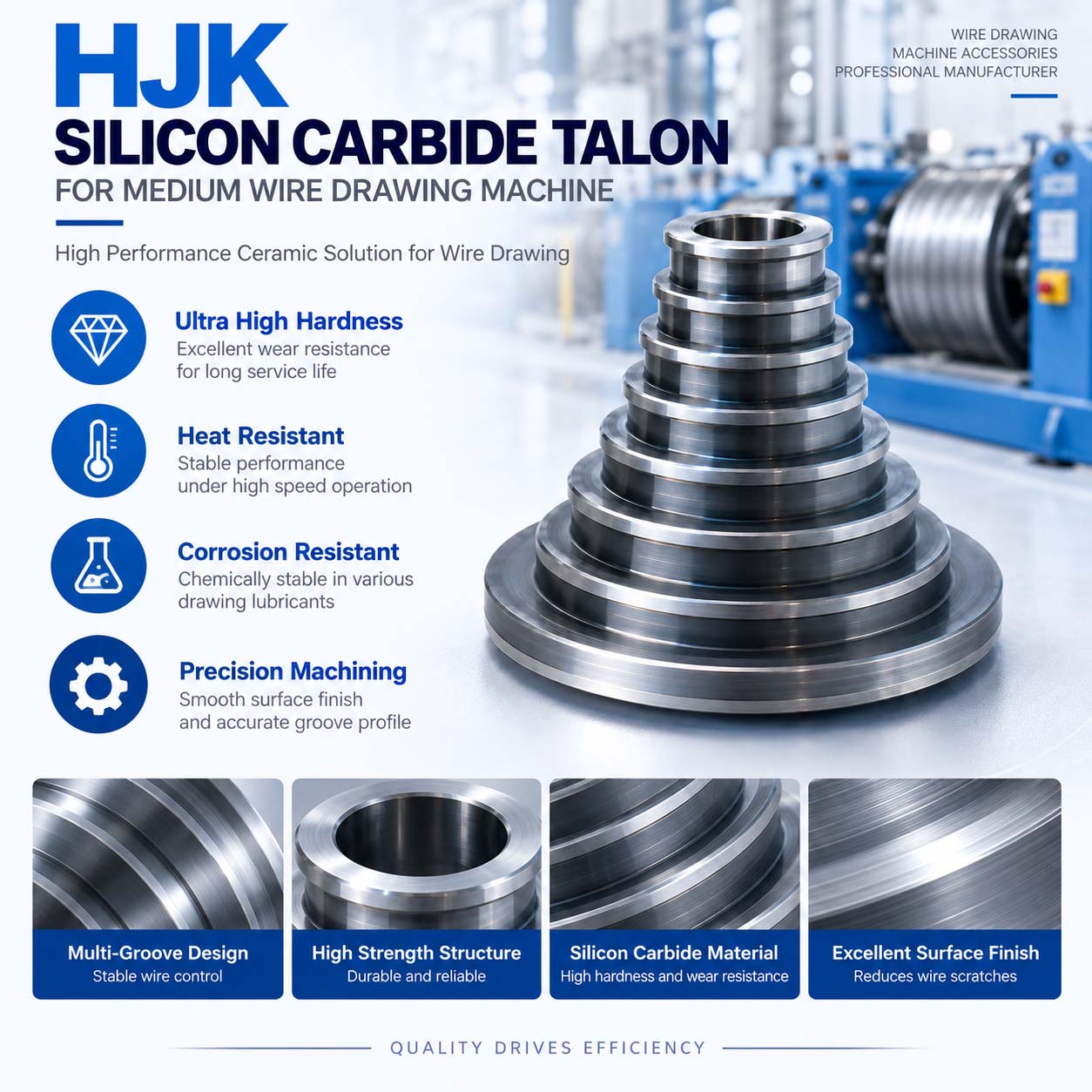

HJK Silicon Carbide Capstan for Medium Wire Drawing Machine

In metal wire drawing processes, the medium wire drawing stage requires capstans with excellent wear resistance, surface finish, and dimensional stability. The HJK Silicon Carbide Capstan for Medium Wire Drawing Machine is specially designed for these demanding conditions.

Made from high-performance silicon carbide (SiC) ceramic, this capstan provides outstanding hardness, chemical stability, and wear resistance. It effectively handles the friction and corrosion challenges caused by high-speed wire drawing, helping reduce downtime caused by frequent capstan replacement and improving overall production efficiency.

Product Features and Material Advantages

Silicon carbide is an advanced ceramic material with hardness second only to diamond and cubic boron nitride. It also offers low density, high thermal conductivity, and excellent thermal shock resistance.

The main advantages of HJK Silicon Carbide Capstan include:

• Excellent Wear Resistance:
  The high hardness of silicon carbide effectively resists wear caused by continuous wire friction, extending capstan service life.
• Corrosion Resistance:
  SiC ceramic is chemically stable and resistant to drawing lubricants, acidic or alkaline environments, preventing rust and corrosion.
• Smooth Surface Finish:
  Precision machining creates a smooth working surface, reducing wire scratches and improving final product quality.
• Dimensional Stability:
  Low thermal expansion helps maintain accurate groove profiles and diameters under temperature variations, ensuring stable drawing accuracy.

Applications

HJK Silicon Carbide Capstans are mainly used in medium wire drawing machines and are suitable for various metal wire processing applications, including:

• Copper wire and copper alloy wire drawing
• Aluminum wire and aluminum alloy wire drawing
• Stainless steel wire and galvanized steel wire processing
• Other non-ferrous metal and alloy wire reduction processes

They are widely used in industries such as:

• Wire and cable manufacturing
• Welding wire production
• Metal wire processing

The capstan provides stable performance in continuous drawing operations and can be customized according to different machine models and production requirements.

Selection and Installation Guide

Proper selection is essential for achieving stable drawing performance and long service life.

Wire Material and Diameter

Different metals have different hardness and friction characteristics. The groove design and surface treatment should be selected according to wire material and diameter.

Drawing Speed

High-speed drawing requires excellent wear resistance and dynamic balance. Silicon carbide capstans are suitable for a wide range of drawing speeds when properly selected.

Lubrication Conditions

Confirm compatibility between the SiC material and the lubricant used in the drawing process to ensure stable long-term operation.

Installation Requirements

During installation:

• Ensure proper fit between the capstan bore and machine shaft.
• Prevent excessive radial runout and vibration.
• Regularly inspect the working surface and clean any contaminants inside the grooves.

Maintenance Recommendations

Proper maintenance helps maximize the service life of silicon carbide capstans:

• Regularly inspect the capstan surface for cracks, chips, or abnormal wear.
• Keep drawing lubricant clean and filtered to prevent abrasive particles from entering the grooves.
• Remove wire debris and oil residue after shutdown to prevent contamination buildup.
• Store spare capstans in a dry environment away from impact and corrosive gases.

Frequently Asked Questions

What Is the Difference Between Silicon Carbide and Zirconia Capstans?

Silicon carbide provides higher hardness and better wear resistance, while zirconia offers better toughness and impact resistance. Silicon carbide is suitable for applications requiring extreme wear resistance, while zirconia is often preferred for conditions with higher impact or surface protection requirements.

Which Wire Drawing Machines Are Suitable for Silicon Carbide Capstans?

They are mainly designed for medium wire drawing machines, including HJK series equipment. Customized solutions can also be provided according to machine drawings or samples.

How Can I Know When the Capstan Needs Replacement?

Replacement is recommended when:

• Deep wear grooves appear on the working surface
• Wire diameter variation exceeds allowable tolerance
• Wire scratches increase
• Groove dimensions no longer meet production requirements

Regular measurement of groove diameter helps predict service life.

Can Silicon Carbide Capstans Be Repaired?

Due to the extremely high hardness of silicon carbide, repair is usually not economical after significant wear. Minor surface damage may be corrected using diamond tools, but severely damaged capstans should be replaced.

How Long Is the Service Life?

Service life depends on wire material, drawing speed, lubrication conditions, and maintenance practices. Under normal operating conditions, silicon carbide capstans can provide significantly longer service life than traditional metal capstans.

Can Non-Standard Sizes Be Customized?

Yes. HJK can manufacture customized silicon carbide capstans according to customer drawings or samples, including special groove designs, outer diameters, and bore dimensions.
