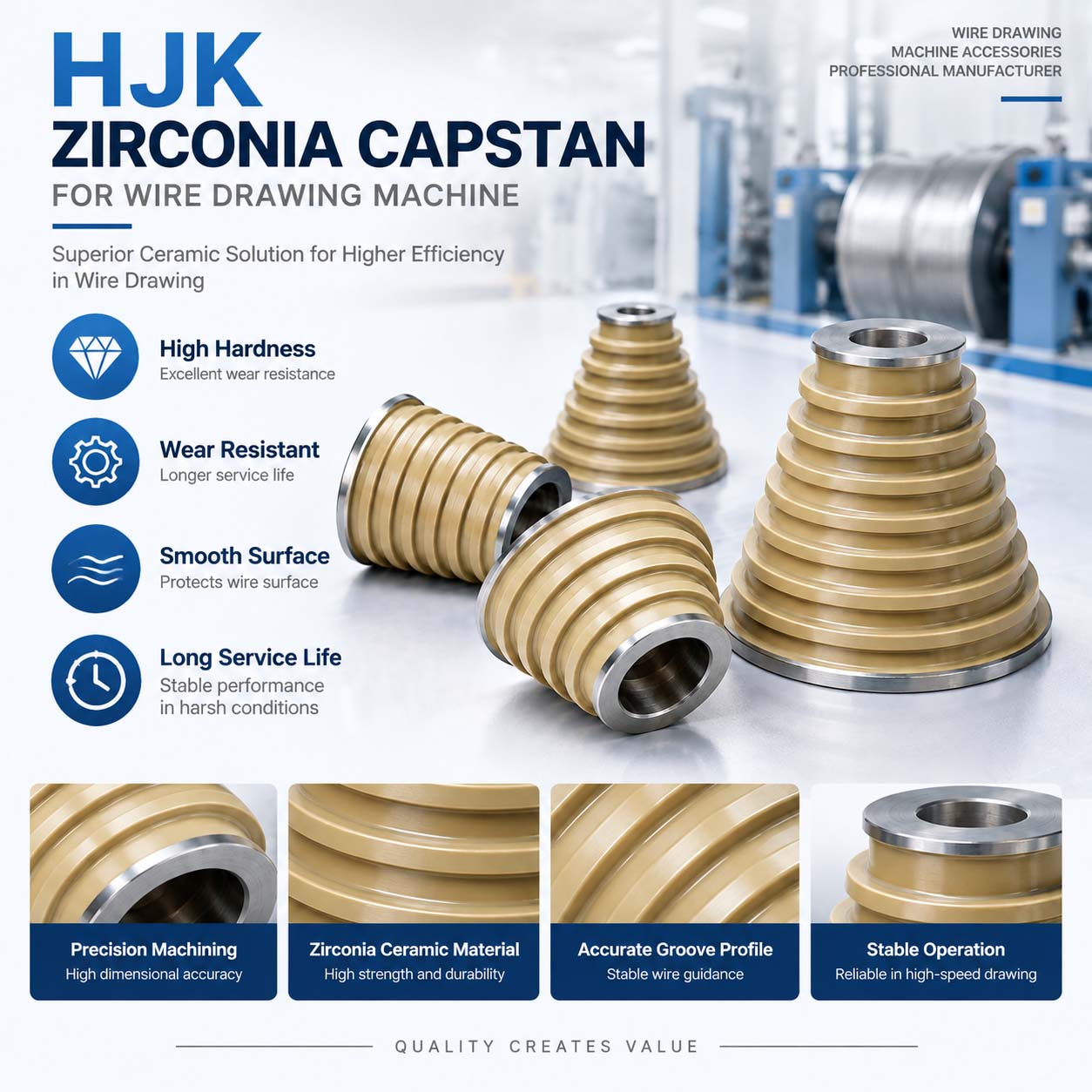

HJK Zirconia Capstan

In the metal wire drawing process, the capstan is a critical component for power transmission and wire speed control. Traditional metal capstans may suffer from rapid wear and wire surface damage under high-speed and high-tension conditions. The HJK Zirconia Capstan provides a more durable solution for wire drawing applications thanks to the excellent properties of zirconia ceramic.

Zirconia (ZrO₂) ceramic features high hardness, low friction coefficient, excellent chemical stability, and superior surface performance. It helps improve drawing quality, reduce wire scratches, and decrease downtime caused by frequent capstan replacement.

Product Features and Material Advantages

HJK Zirconia Capstans are manufactured from high-purity zirconia ceramic through precision forming and sintering processes.

Main advantages include:

• Excellent Wear Resistance:
  Zirconia ceramic has much higher wear resistance than hardened steel, allowing the groove profile to remain accurate during long-term operation.
• Smooth Surface Finish:
  Precision grinding provides a low roughness groove surface, reducing friction and preventing wire scratches. It is especially suitable for soft wires and applications requiring high surface quality.
• Corrosion Resistance:
  Zirconia is resistant to drawing lubricants, cleaning agents, and humid environments, avoiding rust and corrosion problems.
• Dimensional Stability:
  Low thermal expansion ensures stable dimensions under temperature changes, maintaining accurate wire speed and tension control.

Typical Applications

HJK Zirconia Capstans are widely used in various wire drawing applications, including:

• Copper wire, aluminum wire, and alloy wire drawing processes.
• Stainless steel wire, galvanized wire, and welding wire production.
• Electrical conductor and cable manufacturing lines.
• Replacement of traditional steel capstans where wear and wire surface damage are concerns.

Different models are available for various machines, including medium wire drawing machines and fine wire drawing machines. Customized specifications can also be supplied according to equipment requirements.

Selection and Installation Guide

Selection Considerations

Capstan Diameter and Groove Design
The capstan size and groove profile must match the wire drawing machine design to ensure proper wire contact angle and stable tension control.

Wire Material and Diameter
Different wire materials require different surface performance. Zirconia capstans provide excellent versatility, but the applicable wire diameter range and working conditions should be confirmed before selection.

Speed and Load Conditions
Although zirconia has excellent compressive strength, excessive impact loads and overload conditions should be avoided.

Installation Requirements

• Check the tolerance between the shaft and capstan bore before installation to prevent excessive stress or vibration.
• Use proper tools for uniform installation. Do not hammer the ceramic capstan.
• Ensure proper alignment between the capstan and adjacent guide wheels to prevent uneven wire wear.

Maintenance Recommendations

Proper maintenance helps maximize service life:

• Regularly inspect groove wear. If deep grooves or increased surface roughness appear, repair or replace the capstan.
• Use neutral cleaning agents and avoid prolonged exposure to strong acids or alkalis.
• Store ceramic components separately to prevent impact damage.
• Keep drawing lubricant clean, as abrasive particles can accelerate groove wear.

Frequently Asked Questions

What Is the Difference Between Zirconia and Silicon Carbide Capstans?

Zirconia offers better toughness and impact resistance, while silicon carbide provides higher hardness and wear resistance but is more brittle. Zirconia is generally preferred for applications requiring excellent surface quality and better resistance to mechanical impact.

How Long Is the Service Life of a Zirconia Capstan?

Service life depends on wire material, drawing speed, tension, lubrication conditions, and maintenance. Under normal operating conditions, zirconia capstans typically provide significantly longer service life than conventional steel capstans.

Can Custom Sizes Be Manufactured?

Yes. Customized zirconia capstans can be produced according to customer drawings, samples, machine specifications, and special groove requirements.

Why Does a Zirconia Capstan Develop Chips or Cracks?

Possible causes include improper installation, impact overload, hard particles on the wire surface, excessive vibration, or material defects. Proper installation and clean operating conditions help prevent damage.

When Should a Capstan Be Replaced?

Replacement is recommended when groove wear causes wire scratches, wire diameter fluctuations, abnormal vibration, or excessive runout. Regular groove inspection helps determine replacement timing.

Are Zirconia Capstans Suitable for Wet Drawing?

Yes. Zirconia ceramic has excellent corrosion resistance and can operate reliably in emulsion and oil-based lubrication environments.
