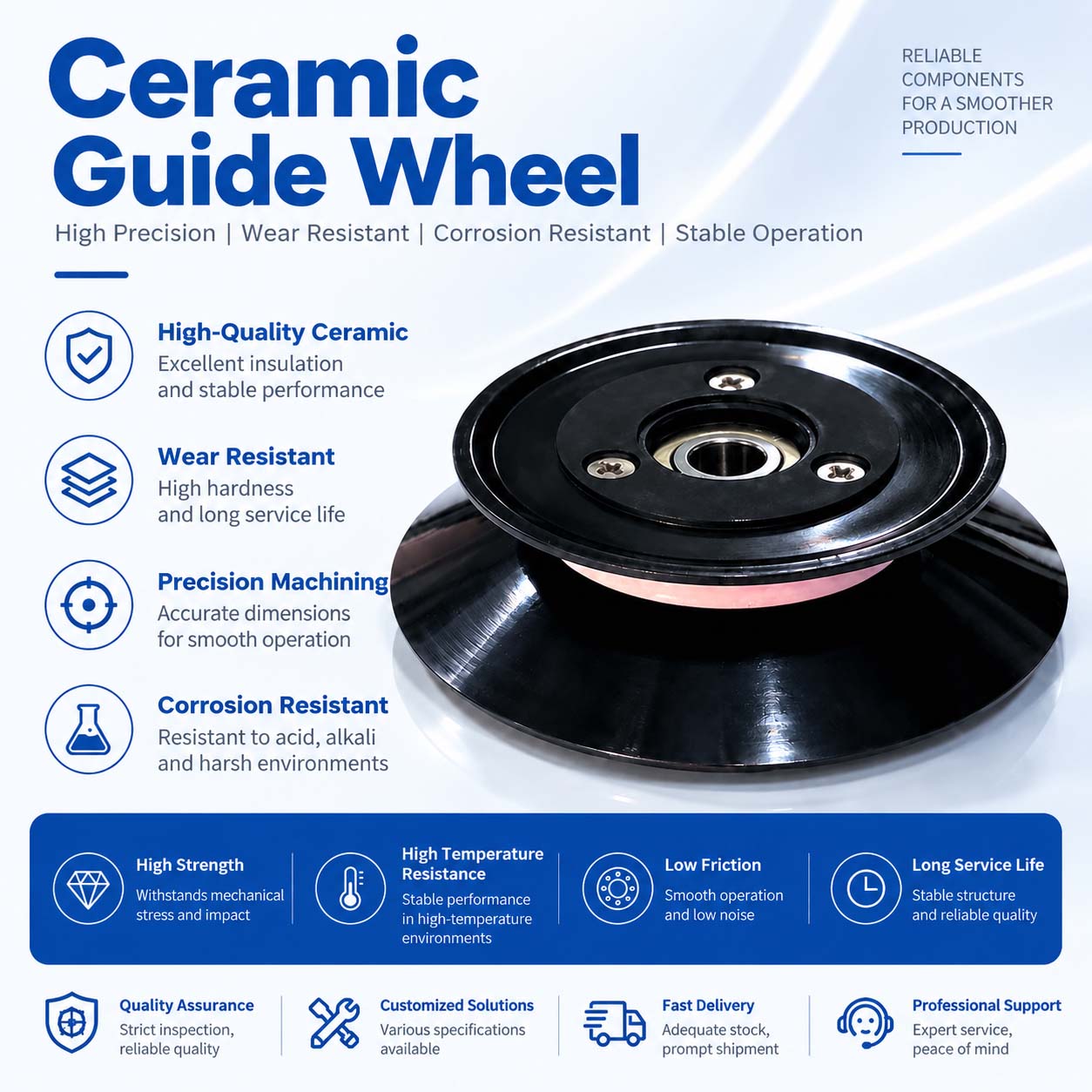

CR1011 Wear-Resistant Ceramic Coated Guide Wheel Assembly
In high-speed wire processing, the wear resistance of guide wheels directly affects production efficiency and product quality. The CR1011 Wear-Resistant Ceramic Coated Guide Wheel Assembly adopts advanced ceramic coating technology and a lightweight design of approximately 110 g, providing a reliable guiding solution for wire, cable, steel wire, optical fiber, and other precision material processing applications.
The high-hardness ceramic coating effectively resists abrasion and corrosion, significantly extending the service life of the guide wheel and reducing downtime caused by frequent replacement.
Product Features
The core advantage of CR1011 is its wear-resistant ceramic coating. The coating provides high hardness, low friction, and excellent surface stability, allowing the guide wheel to withstand continuous friction from high-speed wire movement while maintaining a smooth contact surface.
Main features include:
- Weight: Approx. 110 g, lightweight and easy to install.
- Coating Type: Wear-resistant ceramic coating.
- High Hardness: Provides excellent resistance against abrasive wear.
- Corrosion Resistance: Suitable for humid and chemically demanding environments.
- Low Friction: Reduces wire tension and helps improve energy efficiency.
- Smooth Surface: Minimizes scratches and protects sensitive wire materials.
Applications
CR1011 ceramic coated guide wheel assemblies are widely used in various wire processing equipment, including wire drawing machines, stranding machines, winding machines, and extrusion lines.
Typical applications include:
Steel Wire Processing
Used as guide wheels in steel wire and wire rope production, where high wear resistance and stable operation are required.
Optical Fiber and Cable Manufacturing
Provides smooth wire guidance during fiber and cable production, helping prevent surface damage.
Wire and Cable Extrusion
Suitable for guiding conductors and cables during continuous extrusion processes.
Textile Machinery
Used as yarn and fiber guide components in spinning, drawing, and winding applications.
The ceramic coating enables stable performance under high-speed and high-tension operating conditions, improving production reliability and product quality.
Selection and Installation
When selecting CR1011, confirm the equipment mounting dimensions, wire diameter range, operating speed, and working environment.
The modular design allows quick replacement and easier maintenance.
Installation Steps:
- Check the guide wheel appearance and ensure the coating surface is free from damage.
- Install the guide wheel onto the equipment shaft and secure it with the proper fasteners.
- Rotate the wheel manually to confirm smooth operation without resistance.
- Thread the wire through the groove and adjust the tension according to production requirements.
Regular inspection of the coating condition is recommended. If obvious scratches, peeling, or abnormal wear appear, the guide wheel should be replaced to prevent product quality issues.
Maintenance Recommendations
Proper maintenance helps extend the service life of CR1011.
Recommended practices:
- Clean the guide wheel surface regularly to remove wire residue, dust, and contaminants.
- Use soft cloths or brushes for cleaning. Avoid metal tools that may damage the ceramic coating.
- Check bearing lubrication and apply high-temperature grease when required.
- Avoid impact or collision during storage and handling.
- Inspect the coating condition regularly during operation.
Good maintenance ensures stable performance and reduces overall operating costs.
Frequently Asked Questions
What is the coating thickness of CR1011?
The ceramic coating thickness can be customized according to operating requirements, including wire diameter, speed, and wear conditions.
Can CR1011 be used in wet drawing processes?
Yes. The ceramic coating provides excellent corrosion resistance and is suitable for wet drawing applications involving lubricants or moisture.
Does the 110 g weight include the bearing?
The stated weight refers approximately to the guide wheel body. Actual weight may vary depending on bearing configuration and customization.
How can I determine whether the coating needs replacement?
Replacement is recommended when obvious wear grooves, coating peeling, or abnormal scratches on the processed wire appear.
What is the difference between CR1011 and CR1010?
CR1010 is mainly a zirconia ceramic guide wheel, while CR1011 focuses on a modular guide wheel design with wear-resistant ceramic coating technology. The suitable product depends on application requirements.
Can CR1011 be customized?
Yes. Customized solutions are available for wheel dimensions, groove profiles, coating materials, and installation structures according to customer equipment requirements.
Customized Ceramic Guide Wheel Solutions
We provide customized ceramic coated guide wheel assemblies for wire, cable, optical fiber, steel wire, textile, and precision manufacturing industries.
Wheel dimensions, groove designs, coating specifications, and material options can be customized to achieve high wear resistance, stable operation, and long service life in demanding industrial environments.
