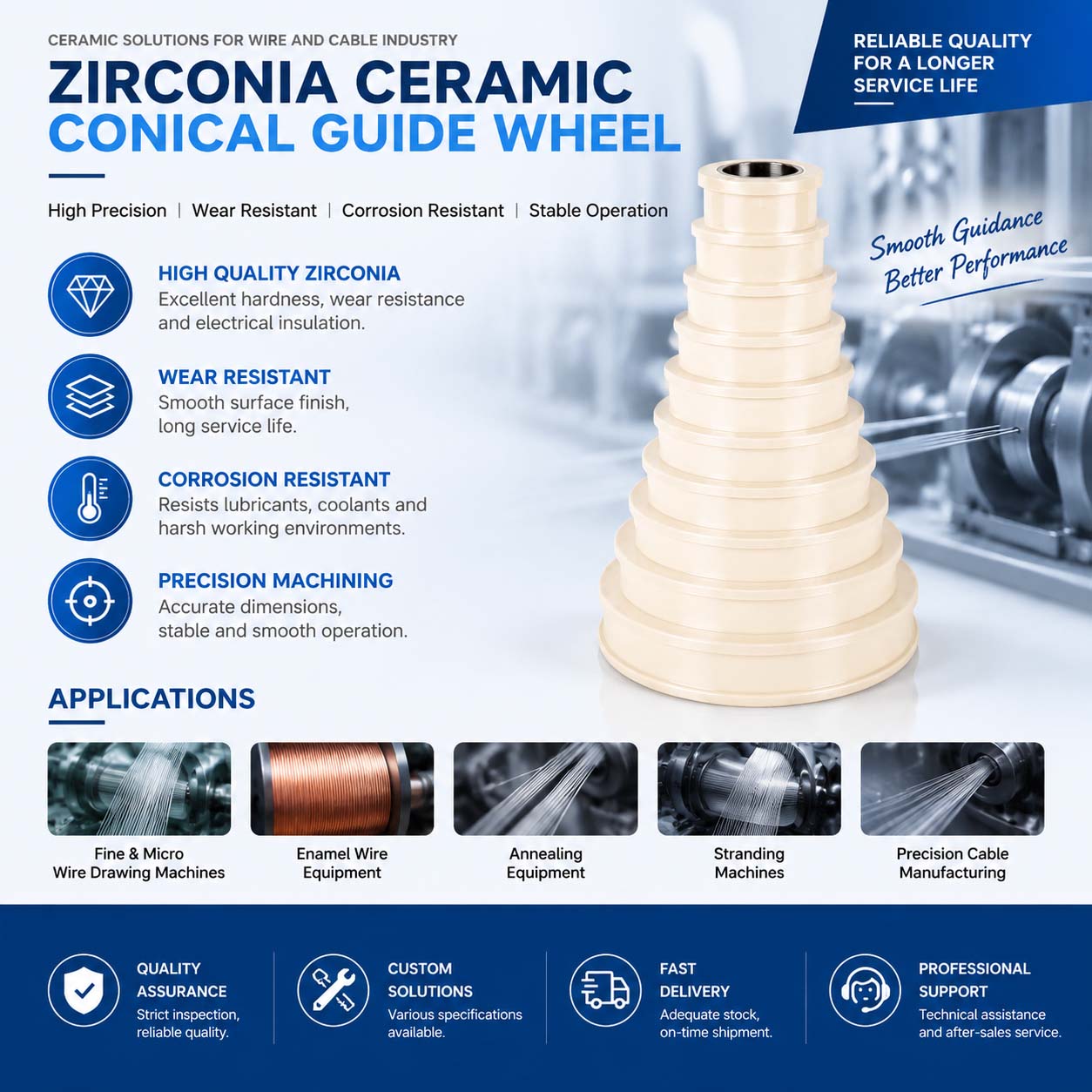

In wire and cable manufacturing, micro wire drawing tower wheels are critical components in guide systems. Their surface performance directly affects wire quality, production efficiency, and equipment stability.

The zirconia micro wire drawing tower wheel features high hardness, low friction coefficient, and excellent wear resistance. It is widely used as a high-performance guide component in cable production lines and precision wire processing equipment.

This article introduces the material advantages, applications, selection considerations, and maintenance methods of zirconia micro wire drawing tower wheels.

Material Features and Advantages

Zirconia (ZrO₂) is a high-performance ceramic material with excellent mechanical and chemical properties.

High Hardness and Wear Resistance

Zirconia ceramic provides:

• Hardness up to HV1200+
• Excellent abrasion resistance
• Long service life

It effectively withstands high-speed wire movement and reduces wear caused by continuous friction.

Low Friction Coefficient

The smooth ceramic surface helps:

• Reduce friction between wire and guide wheel
• Minimize wire breakage
• Improve production stability

Excellent Corrosion Resistance

Zirconia is highly resistant to:

• Drawing lubricants
• Cooling fluids
• Chemical media

It does not rust and maintains stable performance in humid or corrosive environments.

Thermal Stability

The material maintains:

• Dimensional accuracy
• Mechanical strength
• Stable performance

under high-temperature operating conditions.

Electrical Insulation

As a non-conductive ceramic material, zirconia is suitable for applications requiring electrical insulation.

Applications

Zirconia micro wire drawing tower wheels are widely used in:

Micro Wire Drawing Machines

Used for precision drawing of:

• Copper wire
• Alloy wire
• Fine metal wires

The accurate groove design helps maintain consistent wire diameter and surface quality.

Annealing Equipment

Used as wire guiding components during annealing processes, providing:

• Stable wire movement
• Heat resistance
• Dimensional stability

Stranding and Cable Machines

Used as:

• Wire guide wheels
• Wire passing components

to reduce friction damage during wire twisting and cable formation.

Surface Treatment Lines

Suitable for:

• Electroplating lines
• Coating production lines

The corrosion-resistant ceramic surface maintains smooth wire guidance.

Zirconia guide wheels can also be used for fine fibers and other filament materials after proper evaluation.

Selection and Customization Guide

When selecting zirconia micro wire drawing tower wheels, consider:

Wire Diameter Range

The groove width and depth should match the wire diameter to avoid:

• Wire jamming
• Excessive wear
• Unstable operation

Installation Dimensions

Confirm:

• Inner bore diameter
• Outer diameter
• Thickness
• Shaft compatibility

Speed and Load Requirements

For high-speed operation:

• Dynamic balance should be considered.

For heavy loads:

• Structural strength should be evaluated.

Working Environment

Consider:

• Temperature
• Humidity
• Chemical exposure

Zirconia ceramic is suitable for most industrial environments.

Customized non-standard sizes can be manufactured according to customer drawings or samples.

Maintenance Recommendations

Proper maintenance extends the service life of zirconia guide wheels:

• Clean the groove regularly using soft cloth or suitable brushes.
• Remove metal particles and oil residue to prevent surface damage.
• Inspect the groove surface for wear, cracks, or edge chipping.
• Use compatible lubricants to further reduce friction.
• Store unused components in dry and dust-free environments.
• Avoid impact during installation and handling.

For minor surface damage, professional ceramic repair or recoating services may be considered.

Frequently Asked Questions

1. What types of wires are suitable for zirconia micro tower wheels?

They are mainly used for:

• Copper wire
• Copper alloy wire
• Aluminum wire
• Stainless steel micro wire

They can also be used for some non-metal filaments after checking material compatibility.

2. Does zirconia ceramic rust?

No.

Zirconia is a ceramic material and does not rust. It also provides excellent resistance against acids, alkalis, and chemical corrosion.

3. How to determine when the guide wheel needs replacement?

Replacement is recommended when:

• Deep groove wear appears
• Surface roughness increases
• Wire scratches or frequent breakage occur
• Dimensional accuracy exceeds tolerance limits

4. Can I purchase only the guide wheel instead of the complete tower assembly?

Yes.

Individual guide wheels can be supplied separately, or customized according to existing tower wheel assemblies.

5. What is the service life of zirconia guide wheels?

Service life depends on:

• Wire material
• Line speed
• Tension
• Lubrication conditions
• Operating environment

Under normal conditions, zirconia ceramic guide wheels generally provide much longer service life than traditional metal wheels.
