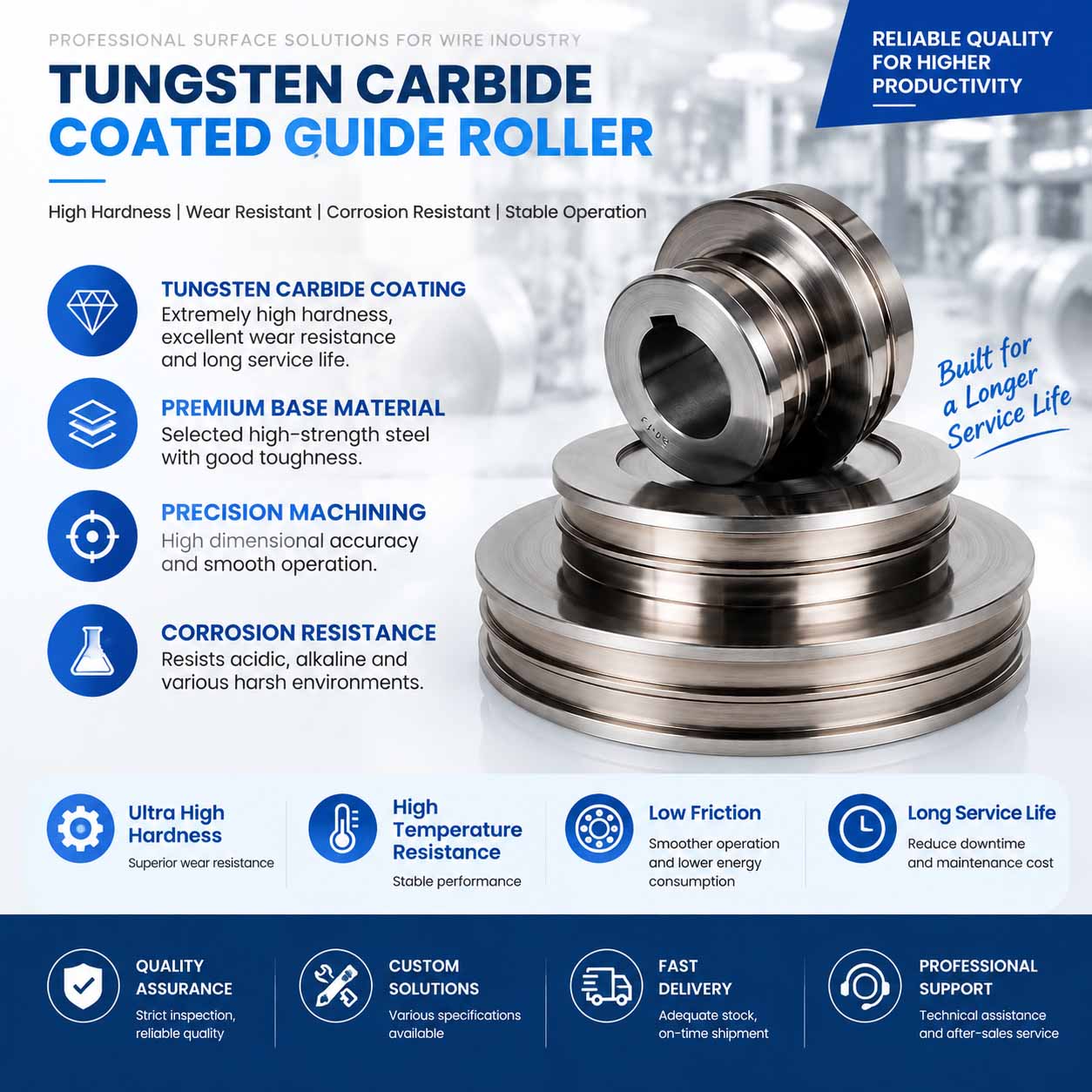

In wire and cable manufacturing, tower wheels are critical components that operate under high-speed rotation and continuous wire friction. Their surface performance directly affects production efficiency, equipment stability, and wire quality.

To extend the service life of medium wire drawing tower wheels, we provide professional tungsten carbide coating solutions. With a typical coating thickness of 1.0–1.2 mm, the coating provides excellent wear and corrosion resistance, making it suitable for various wire drawing and stranding equipment.

Tungsten Carbide Coating Process and Features

Tungsten carbide (WC) coating is widely recognized for its extremely high hardness and excellent wear resistance.

Through advanced thermal spray technology, tungsten carbide powder is heated and sprayed onto the tower wheel surface, forming a dense and durable protective layer.

Main Advantages

High Wear Resistance

The tungsten carbide coating effectively withstands:

• High-speed wire friction
• Abrasive wear
• Continuous mechanical stress

It significantly reduces wear and extends component service life.

Uniform Coating Thickness

Standard coating thickness:

1.0–1.2 mm

The thickness can be adjusted according to:

• Component size
• Operating conditions
• Wear requirements

Strong Bonding Strength

The coating provides excellent adhesion and is resistant to peeling under high-speed operation.

Smooth Surface Performance

A smooth coated surface helps:

• Reduce wire friction
• Minimize wire breakage
• Improve production stability

Applications

Medium wire drawing tower wheels with tungsten carbide coating are widely used in:

Wire Drawing Machines

Suitable for:

• Copper wire drawing
• Aluminum wire drawing
• Alloy wire processing

Stranding and Cable Equipment

Used for:

• Tower wheels
• Guide rollers
• Wire passing wheels

Annealing and Tinning Lines

Applied to:

• Tension control components
• Wear-resistant guiding systems

The coating treatment reduces downtime caused by component wear and improves production efficiency.

Customization and Selection Guide

We provide customized tungsten carbide coating services according to customer drawings, samples, or equipment requirements.

Important selection factors include:

Base Material

Most tower wheels are made from:

• Steel
• Alloy steel

The substrate must be suitable for thermal spray coating.

Dimensions and Tolerances

Customers should provide:

• Outer diameter
• Groove dimensions
• Shaft hole size
• Assembly requirements

to ensure accurate installation after coating.

Coating Thickness

Standard thickness:

1.0–1.2 mm

Special thickness requirements can be evaluated according to working conditions.

Order Quantity and Delivery

We support:

• Small batch customization
• Mass production orders

Customers are welcome to provide old parts or drawings for technical evaluation and quotation.

Maintenance Recommendations

To maximize the performance of tungsten carbide coated tower wheels:

• Avoid impact damage during installation.
• Regularly inspect coating wear conditions.
• Keep wire surfaces clean to prevent abrasive particle damage.
• Ensure lubrication systems operate properly.
• Avoid dry friction and overheating.

Proper maintenance helps extend service life and reduce total operating costs.

Frequently Asked Questions

1. Can tungsten carbide coating thickness be customized?

Yes. The standard thickness is 1.0–1.2 mm, but it can be adjusted according to component size and application requirements.

2. Does the coated tower wheel require additional machining?

Normally, the coated surface can meet standard operating requirements.

For applications requiring higher precision, light polishing or finishing can be performed.

3. Which tower wheels are suitable for tungsten carbide coating?

Suitable components include:

• Steel medium wire drawing tower wheels
• Guide rollers
• Wire passing wheels

Aluminum or other lightweight materials require evaluation before coating.

4. How long is the service life of coated tower wheels?

Service life depends on:

• Wire material
• Drawing speed
• Tension
• Lubrication conditions

Compared with uncoated wheels, tungsten carbide coated wheels can provide significantly longer wear resistance.

5. Do you provide refurbishment services for old parts?

Yes.

Worn tower wheels can be sent for inspection. If the substrate remains in good condition, recoating can restore performance and reduce replacement costs.

6. What is the delivery time for customized products?

Delivery depends on:

• Order quantity
• Component complexity
• Coating requirements

Small batch customized orders usually require approximately:

7–15 working days
