The micro wire drawing machine capstan wheel is a key transmission and guiding component used in micro wire drawing machines. It is mainly applied for drawing ultra-fine metal wires, such as copper wire and alloy wire. Its surface quality, wear resistance, and dimensional accuracy directly affect wire surface finish, drawing stability, and production efficiency.
Structure Features of Micro Wire Drawing Capstan Wheel

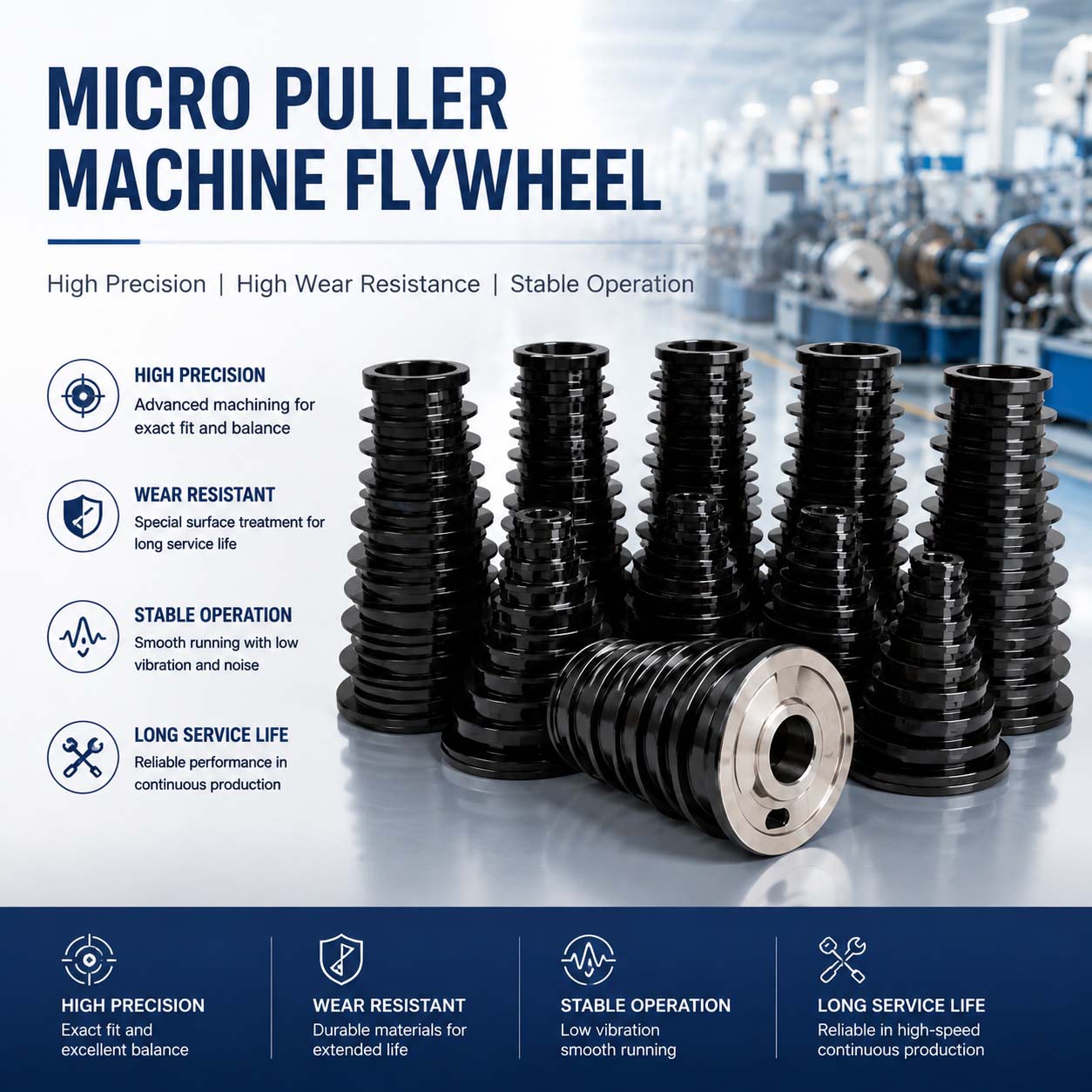

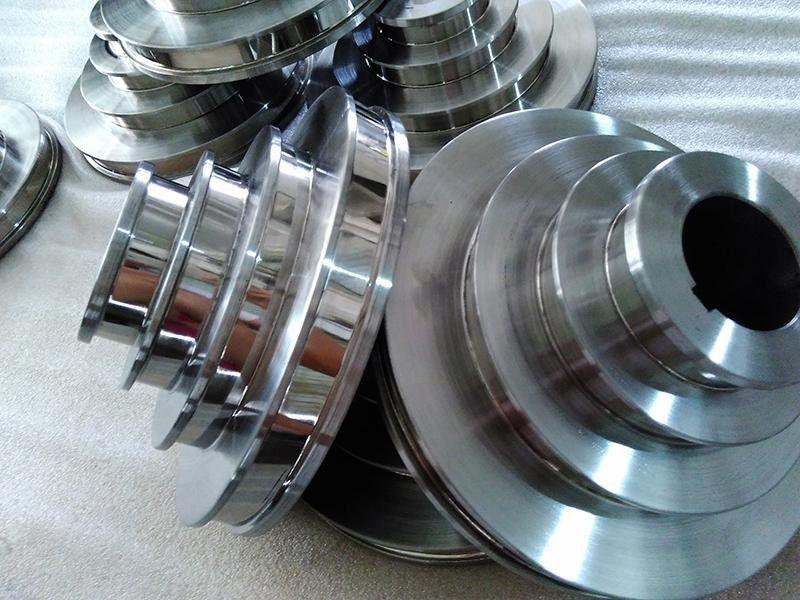

Micro wire drawing capstan wheels usually adopt a multi-step stepped structure, with gradually reduced diameters at each stage to meet different wire reduction requirements.
The wheel groove surface requires:
- High hardness
- Low friction coefficient
- Excellent dimensional accuracy
- High wear resistance
These characteristics help reduce wire surface scratches, prevent wire breakage, and ensure stable high-speed drawing operation.
Common materials include:
- Tungsten carbide
- Ceramic
- Surface-treated alloy steel

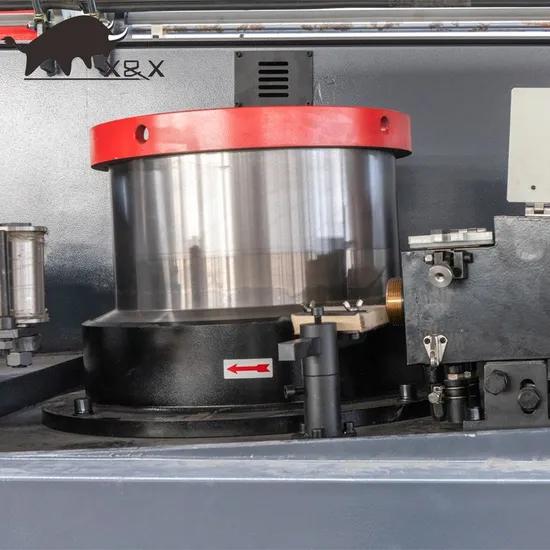

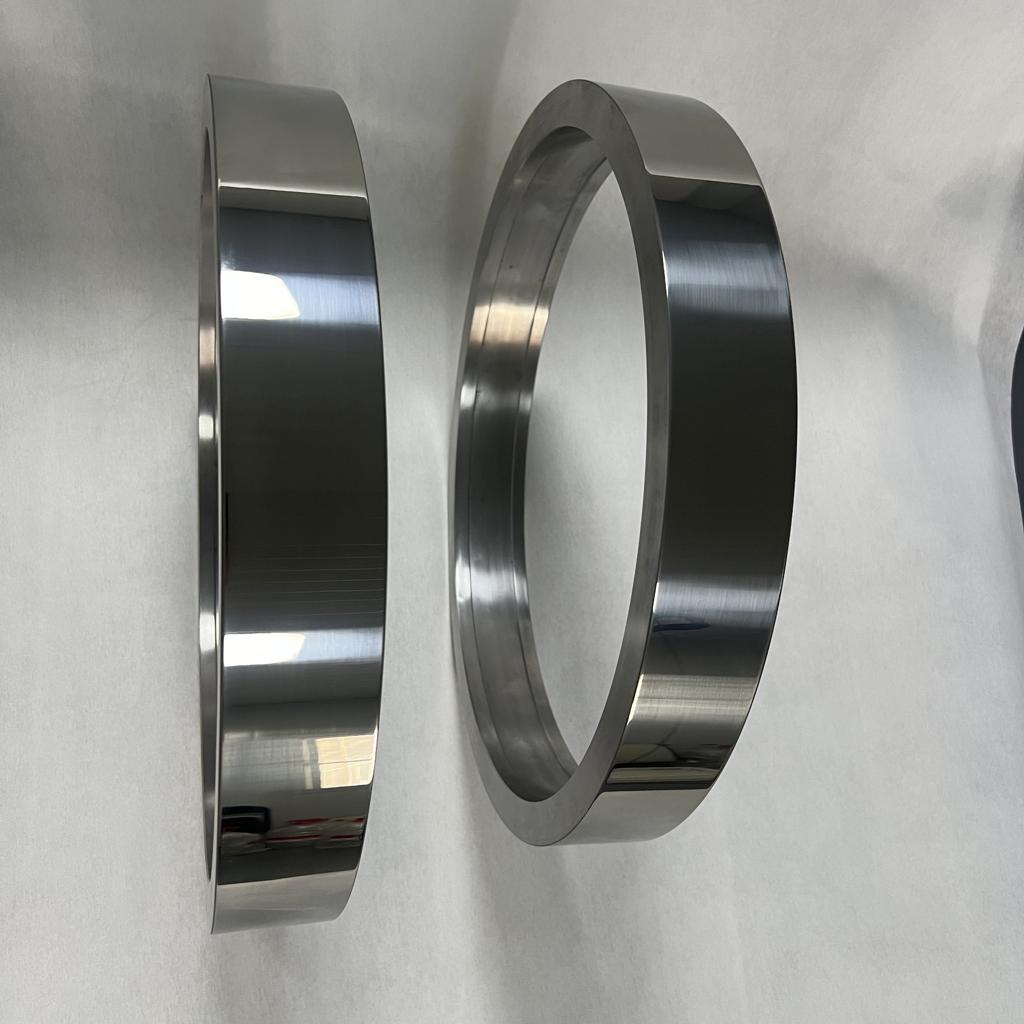

Among them, tungsten carbide capstan wheels are widely used due to their excellent hardness, wear resistance, and long service life.
Material Comparison
Different wire materials and drawing speeds require different capstan wheel materials.
Tungsten Carbide Capstan Wheel
Advantages:
- Extremely high hardness
- Excellent wear resistance
- Long service life
- Suitable for high-speed wire drawing
Recommended for:
- Copper wire drawing
- Alloy wire drawing
- High precision micro wire production
Ceramic Capstan Wheel
Advantages:
- Very smooth surface
- Low friction coefficient
- Excellent surface protection for fine wires
Suitable for:
- Ultra-fine wire drawing
- Applications requiring high surface quality
Alloy Steel Capstan Wheel
Advantages:
- Lower cost
- Easy processing
- Can be enhanced by surface treatments
Suitable for:
- Medium and low-speed wire drawing applications
Key Points for Selection
When selecting a micro wire drawing capstan wheel, pay attention to the following parameters:
1. Diameter and Drawing Pass Matching
The diameter of each step must match the drawing die design and reduction ratio to avoid:
- Wire slipping
- Excessive tension
- Uneven wire deformation
2. Surface Roughness
High-quality capstan wheels generally require a smooth groove surface, usually:
Ra ≤ 0.4 μm
to reduce friction and prevent wire scratches.
3. Dynamic Balance
For high-speed operation, the capstan wheel should maintain excellent dynamic balance, normally:
G2.5 grade or higher
to reduce vibration and noise.
4. Installation Accuracy
Before installation, confirm:
- Shaft hole size
- Keyway specification
- Matching accuracy with the machine spindle
Installation and Maintenance
Installation Tips
- Clean the shaft hole and inner bore before installation.
- Use proper installation tools and avoid direct hammering.
- Tighten bolts evenly in diagonal sequence.
- Check radial runout and axial runout after installation.
High precision installation helps ensure stable operation and extend service life.
Maintenance Recommendations
Regular inspection is essential:
- Check groove wear and surface damage.
- Replace or repair when deep wear marks appear.
- Keep lubrication systems working properly.
- Check dynamic balance periodically for high-speed equipment.
If minor surface wear occurs, professional repair processes such as tungsten carbide coating, grinding, and surface restoration can restore performance and extend service life.
Frequently Asked Questions
How long does a micro wire drawing capstan wheel last?
Service life depends on material, wire hardness, drawing speed, and operating conditions.
A high-quality tungsten carbide capstan wheel can typically operate for 6–12 months or longer under normal working conditions.
When should the capstan wheel be replaced?
Replacement is recommended when:
- Groove wear becomes visible
- Wire surface scratches increase
- Drawing tension becomes unstable
- Vibration or noise increases
Can a worn capstan wheel be repaired?
Yes. Depending on the material and damage condition, repair methods such as coating, grinding, and surface restoration can be applied.
Can different materials be mixed on the same machine?
It is recommended to use the same material type on one machine to maintain consistent friction characteristics and wire tension.
HJK Micro Wire Drawing Capstan Wheel
HJK provides high-precision tungsten carbide capstan wheels for micro wire drawing machines, featuring:
- High wear resistance
- Excellent surface finish
- Stable operation
- Long service life
- Customized designs available
Our capstan wheels are widely used in copper wire, alloy wire, cable, and precision wire manufacturing industries, helping customers improve drawing efficiency and reduce maintenance costs.
