Coating Service Overview
In the heavy wire drawing process, the tungsten carbide coated tower pulley for heavy wire drawing machines is a critical component for power transmission and wire guidance. It controls wire deformation while maintaining stable drawing performance.
Due to its excellent wear resistance, fatigue resistance, and dimensional stability, tungsten carbide tower pulleys are widely used for continuous drawing of copper, aluminum, steel, and alloy wires. Proper selection and maintenance can significantly reduce downtime and improve wire surface quality.
Structure and Features

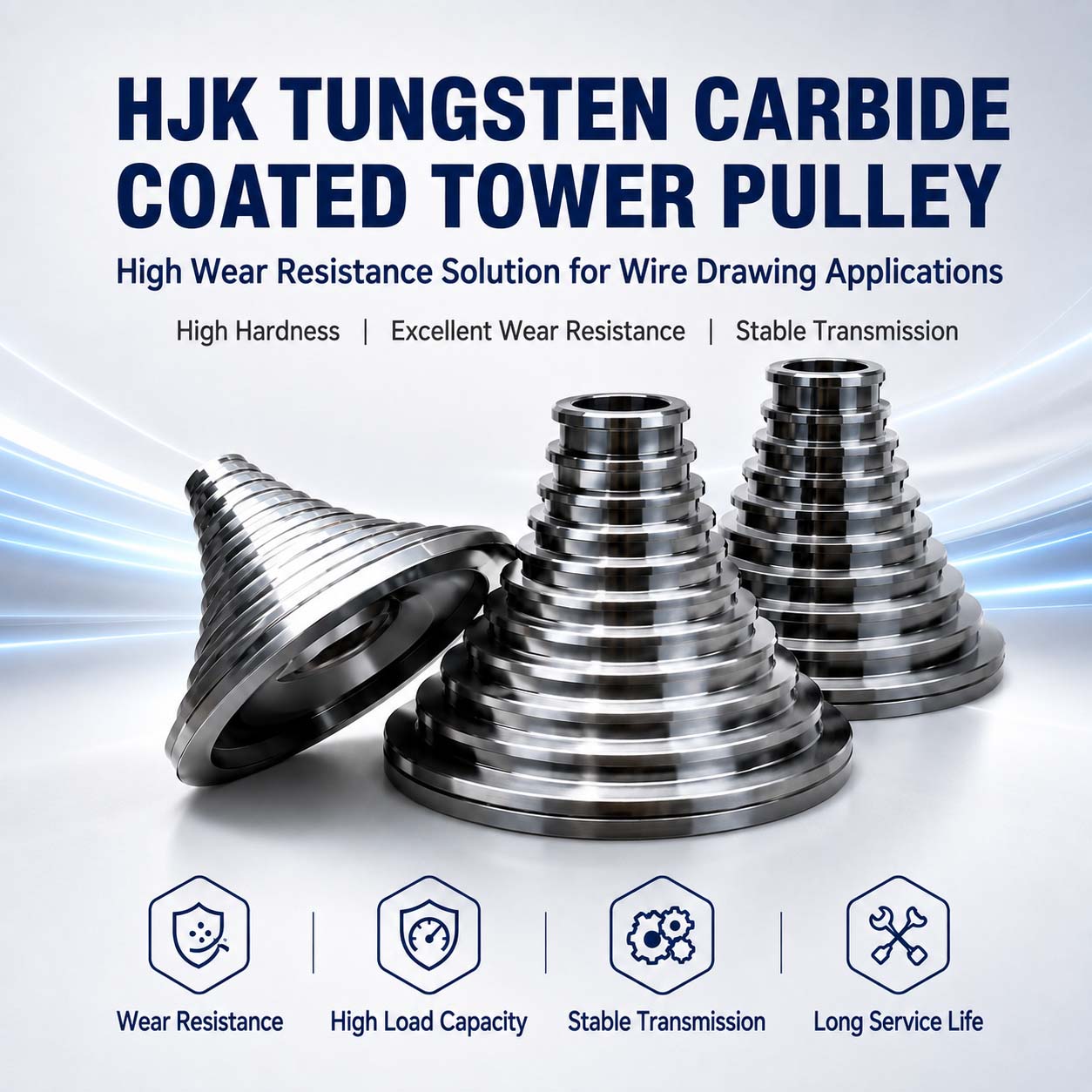

A heavy wire drawing machine tower pulley usually consists of multiple stepped grooves with different diameters, arranged in a tower shape to match different drawing passes.
The working surface is manufactured with a tungsten carbide layer through thermal spraying technology or solid carbide manufacturing processes. The tungsten carbide surface provides extremely high hardness, typically above HRA 90, offering much better wear resistance than conventional hardened steel pulleys.
Main Advantages
Excellent Wear Resistance
The tungsten carbide coating effectively withstands continuous sliding friction from high-speed wire movement. Service life can be several times longer than traditional steel pulleys.
Smooth Surface Finish
The groove surface can be precision-machined to mirror-like finishing, reducing wire scratches and improving product quality.
High Fatigue Resistance
The dense carbide structure withstands repeated mechanical stress during high-speed operation and reduces the risk of coating failure.
Excellent Dimensional Stability
The low thermal expansion characteristics help maintain groove accuracy during long-term continuous production.
Applications
Heavy wire drawing machine tungsten carbide tower pulleys are widely used in:
- Wire and cable manufacturing
- Steel wire production
- Welding wire production
- Copper tube and alloy wire processing
For example, in copper rod breakdown drawing, an input wire diameter of around 8 mm can be continuously reduced to approximately 1.2–3.0 mm through multiple drawing stages. During this process, the tower pulley must withstand high-speed friction, tension, and continuous loading.
These pulleys are also suitable for aluminum wire and alloy wire drawing, especially for applications requiring high surface quality, such as enamel wire and tin-plated wire production.
Selection Guide
When selecting a tungsten carbide tower pulley for heavy drawing machines, consider:
Groove Design and Dimensions
The pulley diameter, groove bottom diameter, and groove angle must match the drawing machine design and wire specifications to ensure stable wire contact.
Tungsten Carbide Layer Thickness
A sufficient working layer thickness is required to allow future grinding and refurbishment. The recommended thickness is usually above 0.5 mm, depending on application requirements.
Base Material
The pulley core is commonly made from high-quality carbon steel or alloy steel. Strong bonding between the substrate and tungsten carbide layer is essential for long-term reliability.
Dynamic Balance
High-speed drawing equipment requires excellent balance performance. Dynamic balance grades of G2.5 or higher are recommended to reduce vibration and maintain wire quality.
Installation and Maintenance
Installation Recommendations
- Check the pulley surface for cracks, pores, or defects before installation.
- Measure radial runout with a dial indicator. The recommended tolerance is generally within 0.02 mm.
- Ensure proper shaft and bore fitting to avoid excessive stress or vibration.
- Tighten bolts evenly in a diagonal sequence to prevent uneven loading.
Daily Maintenance
- Regularly inspect groove wear. Repair or replace the pulley when deep grooves or wire surface damage appear.
- Keep cooling and lubrication fluids clean to prevent abrasive particles from damaging the surface.
- Inspect bearings and seals regularly to prevent lubricant leakage.
- Apply rust protection oil and cover the pulley during long-term storage.
Frequently Asked Questions
Is a tungsten carbide tower pulley more expensive than a steel pulley?
The initial cost is higher, but the longer service life, reduced downtime, and repairability usually result in lower overall operating costs.
What should be done if cracks appear on the pulley surface?
Stop operation immediately and inspect the pulley. Cracks may result from overload, impact, or material defects. Severely damaged pulleys should be replaced.
When does a tower pulley need grinding or refurbishment?
Grinding is recommended when groove roughness increases, wire scratches appear, or drawing performance becomes unstable. If groove wear exceeds approximately 0.1 mm, refurbishment should be considered.
Can tungsten carbide tower pulleys be repaired?
Yes. Worn pulleys can be restored through precision grinding or re-coating with tungsten carbide. Professional refurbishment is required to ensure coating bonding strength and dimensional accuracy.
What is the difference between heavy and fine wire drawing tower pulleys?
Heavy drawing tower pulleys have larger diameters, more grooves, and higher load capacity. They require stronger carbide layers and higher bonding performance, while fine wire drawing pulleys focus more on surface finish and precision.
What materials can tungsten carbide tower pulleys process?
They are suitable for copper, aluminum, steel, and alloy wires. For extremely hard materials such as tungsten wire, specific wear testing is recommended before selection.
Heavy wire drawing machine tungsten carbide coated tower pulleys provide high durability, stable transmission, and precision performance for demanding wire production environments.
