Coating Service Overview

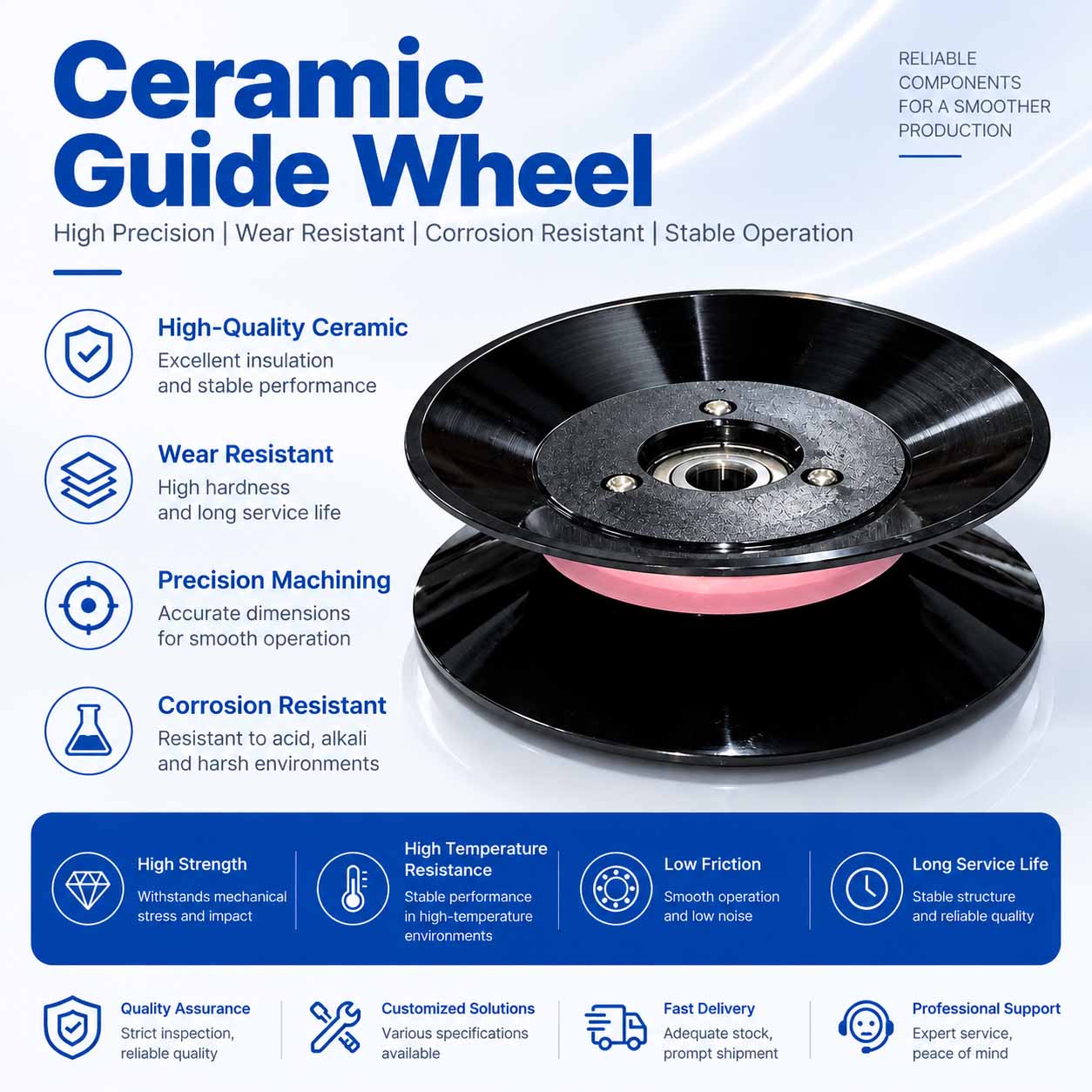

In precision guiding systems, the weight and surface performance of guide wheels directly affect equipment stability, accuracy, and service life. The CR1009 Modular Guide Wheel features a lightweight design of only 60 g and combines alloy coating technology with zirconia ceramic coating to provide a reliable solution for high-speed and high-wear applications.
Suitable for wire and cable production, textile machinery, and other precision guiding systems requiring low friction and high wear resistance, CR1009 helps reduce maintenance frequency and improve production efficiency.
Product Specifications and Coating Features
CR1009 is a modular guide wheel with a total weight of approximately 60 g. Its main advantage comes from its advanced surface coating technology.
Alloy Coating
The alloy coating provides basic wear resistance and impact protection, making it suitable for medium-load working conditions.
Zirconia Ceramic Coating
The zirconia ceramic coating provides:
- High surface hardness
- Excellent corrosion resistance
- Low friction coefficient
- Improved protection against wire wear
The coating process ensures uniform coverage and strong bonding strength, allowing the guide wheel to maintain dimensional stability during long-term operation.
Coating thickness, hardness, and surface finish can be customized according to specific application requirements.
Typical Applications
CR1009 modular guide wheels are widely used in precision material guiding applications.
Wire and Cable Manufacturing
Used in wire drawing, stranding, extrusion, and other processes to guide metal wires and optical fibers while reducing surface scratches.
Textile Machinery
Used for guiding yarn and fibers. The low-friction coating helps reduce fiber damage, hairiness, and breakage.
Printing and Packaging Equipment
Used for film and paper transportation, providing stable support and directional guidance while extending replacement intervals.
Other Precision Guiding Applications
Suitable for applications requiring clean operation, low friction, and high wear resistance, including medical tubing, electronic wires, and other precision materials.
Actual performance depends on line speed, tension, material type, and operating environment. Testing under actual working conditions is recommended.
Selection and Installation Guide
Selection Considerations
When selecting CR1009, consider the following factors:
Material Type
Different materials such as metal wire, fiber, film, and cable require different coating hardness and friction characteristics.
Speed and Tension
High-speed and high-tension applications require excellent wear resistance, accurate machining, and good dynamic balance.
Operating Environment
For humid or corrosive environments, zirconia ceramic coatings provide better protection and stability.
Equipment Space
The lightweight 60 g design is suitable for compact equipment and systems where rotational weight must be minimized.
Installation Recommendations
- Check the coating surface before installation to ensure there are no cracks, peeling, or damage.
- Confirm proper shaft and bore tolerances to avoid excessive stress or vibration.
- Use suitable tools during installation and avoid impact on the coated surface.
- Rotate the guide wheel manually after installation to confirm smooth operation.
Maintenance Recommendations
Proper maintenance can significantly extend the service life of CR1009.
Regular Cleaning
Remove wire residue, dust, and contaminants with a soft cloth or brush. Avoid sharp tools that may damage the coating.
Wear Inspection
Regularly check the coating condition. Replace or repair the guide wheel if severe scratches, coating damage, or exposed substrate areas appear.
Bearing Maintenance
Lubricate bearings according to equipment requirements. Bearing failure may cause uneven wear and affect guide wheel performance.
Storage Conditions
Unused guide wheels should be stored in a dry environment away from corrosive gases and moisture to protect the coating surface.
Proper maintenance helps reduce unexpected downtime and ensures stable production operation.
Frequently Asked Questions
Can CR1009 be used in food-grade applications?
Zirconia ceramic coatings have excellent chemical stability, but food-contact applications require confirmation that both coating materials and substrates meet relevant safety standards.
Can alloy and ceramic coatings be combined?
CR1009 is normally produced with a specific coating system, but customized multi-layer coating solutions may be available depending on application requirements.
Does the 60 g weight include bearings?
The 60 g specification refers to the guide wheel body only. The final assembled weight may vary depending on bearings, shafts, and other components.
How can I determine whether the coating has failed?
Signs of coating failure include cracks, peeling, abnormal wear, surface discoloration, increased vibration, or scratches on the processed material.
Can CR1009 be recoated?
In some cases, the old coating can be removed and replaced after evaluating the condition of the base material. Professional coating assessment is recommended before repair.
Customized Guide Wheel Solutions
We provide customized CR1009 modular guide wheels with different materials, coating systems, groove designs, dimensions, and mounting structures according to customer requirements.
With advanced alloy and ceramic coating technologies, CR1009 delivers high precision, low friction, wear resistance, and stable performance for demanding industrial guiding applications.
