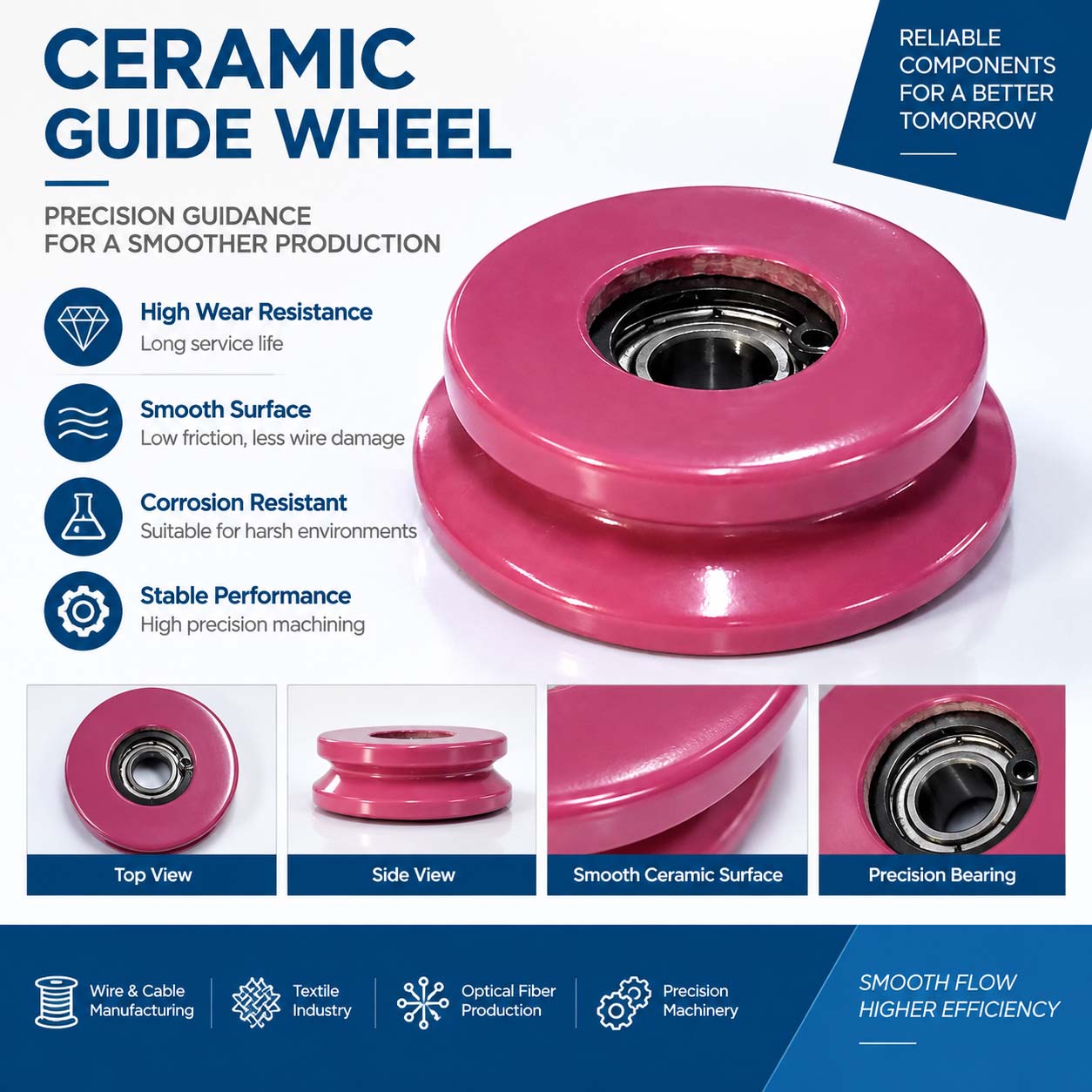

CR2002 Full Ceramic Guide Wheel with Ceramic Coating

In precision manufacturing, guide wheels are essential components in wire, cable, textile, and optical fiber production lines. The CR2002 Ceramic Coated Guide Wheel is designed with a lightweight structure of only 40 g, providing reliable performance for high-speed operation and precision wire guidance.

The product is available in both full ceramic guide wheel and ceramic coated guide wheel designs. Both solutions provide excellent wear resistance, corrosion resistance, and surface smoothness to meet demanding industrial requirements.

Product Overview

CR2002 is a precision ceramic guide component with a lightweight design of approximately 40 g.

Two structures are available:

• Full Ceramic Guide Wheel:
  The entire wheel is manufactured from ceramic material, providing high hardness, excellent wear resistance, and consistent physical properties.
• Ceramic Coated Guide Wheel:
  A ceramic coating is applied to a metal substrate through thermal spraying technology, combining the toughness of the metal base with the wear resistance and smooth surface performance of ceramic.

Product Features and Advantages

• Lightweight Design:
  With a weight of only 40 g, the wheel has low rotational inertia and is suitable for high-speed applications.
• Excellent Wear Resistance:
  The ceramic surface provides high hardness and effectively resists continuous friction from wires and fibers.
• Corrosion Resistance:
  Ceramic materials offer excellent chemical stability and can operate in humid or corrosive environments.
• Smooth Surface Finish:
  The low-friction surface reduces wire damage and improves product quality.
• Multiple Structure Options:
  Full ceramic and ceramic coated versions are available to meet different performance and cost requirements.

Applications

CR2002 Ceramic Guide Wheels are widely used in precision guiding systems, including:

Wire and Cable Manufacturing

Used for wire guiding and wire passing processes in cable production, reducing surface scratches and maintaining stable tension.

Textile Machinery

Used for yarn and fiber guidance. The smooth ceramic surface helps reduce fiber damage and breakage.

Optical Fiber Production

Applied in optical fiber and cable manufacturing lines for precise tension control and stable material guidance.

Annealing Equipment

Used as guide components in annealing systems where wear resistance and dimensional stability are required.

Other Precision Applications

Suitable for industrial systems requiring low friction, high wear resistance, and stable guiding performance.

Selection Guide

When selecting CR2002 guide wheels, consider the following factors:

• Material Type:
  Different materials such as metal wire, fiber, and optical fiber require different surface hardness and finish requirements.
• Working Environment:
  Temperature, humidity, and chemical exposure conditions determine the appropriate ceramic material or coating solution.
• Load and Speed:
  The lightweight 40 g design provides advantages in high-speed, low-load applications.
• Cost Requirements:
  Full ceramic wheels provide higher performance, while ceramic coated wheels offer a more economical solution with improved toughness.

Customized specifications can be provided according to application requirements.

Maintenance Recommendations

To maintain stable performance and extend service life:

• Avoid impact during installation to prevent ceramic cracking.
• Regularly inspect the surface for wear, cracks, or coating damage.
• Clean with soft cloths and avoid hard tools that may scratch the surface.
• Store in a dry environment to prevent corrosion of metal substrates in ceramic coated versions.

Frequently Asked Questions

What Is the Weight of CR2002 Guide Wheel?

The standard weight is approximately 40 g.

What Is the Difference Between Full Ceramic and Ceramic Coated Guide Wheels?

A full ceramic guide wheel is completely made from ceramic, offering high hardness and excellent wear resistance.

A ceramic coated guide wheel uses a metal substrate with a ceramic surface coating, providing better toughness, lower cost, and good wear performance.

What Equipment Can CR2002 Be Used For?

CR2002 is suitable for:

• Wire and cable machines
• Textile machinery
• Optical fiber production lines
• Annealing equipment
• Other precision guiding systems

When Should the Guide Wheel Be Replaced?

Replacement is recommended when:

• Visible wear appears on the surface
• Cracks or chips occur
• Coating peeling affects wire quality
• Rotation becomes unstable

Can Ceramic Coating Peel Off?

Under normal operating conditions, ceramic coatings maintain strong bonding with the substrate. However, abnormal impact or overload operation may cause local coating damage.

Can CR2002 Be Customized?

Yes. Customized solutions are available according to required dimensions, structure, ceramic material, coating specifications, and order quantity.
