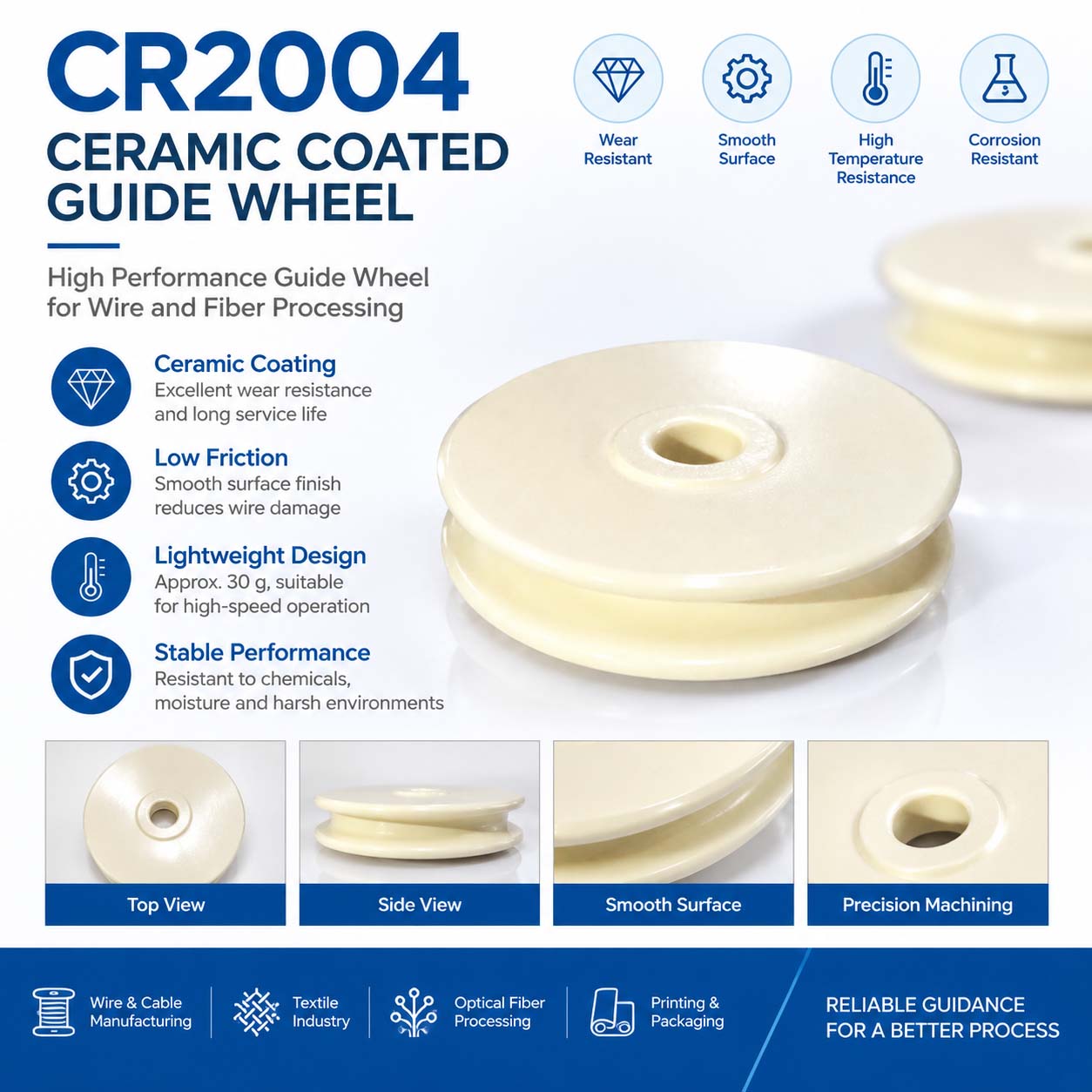

CR2004 Ceramic Coated Guide Wheel

In precision wire processing and textile machinery, the performance of guide wheels directly affects production efficiency and product quality. The CR2004 Ceramic Coated Guide Wheel, also known as a zirconia coated wire guide wheel, is designed for high wear resistance and low-friction applications.

With a lightweight structure of approximately 30 g, CR2004 uses advanced ceramic coating technology to significantly improve surface hardness, smoothness, and wear resistance. It effectively reduces wire damage and extends equipment service life.

Product Features

The main advantages of CR2004 Ceramic Coated Guide Wheel come from its zirconia ceramic coating technology:

• Zirconia Ceramic Coating:
  The metal substrate is coated with zirconia ceramic, combining the toughness of metal with the excellent wear resistance of ceramic.
• Lightweight Design:
  The weight is approximately 30 g, reducing rotational inertia and making it suitable for high-speed operation.
• Smooth Surface Finish:
  Precision grinding provides a smooth working surface, reducing friction and preventing scratches on wire materials.
• Corrosion Resistance:
  Zirconia ceramic coating provides excellent chemical stability and resistance to moisture, acids, and alkalis.
• High Dimensional Accuracy:
  Strict tolerance control ensures stable rotation and reliable guiding performance.

Applications

CR2004 Ceramic Coated Guide Wheels are widely used in equipment requiring precise wire guidance, including:

Wire and Cable Manufacturing

Used in wire drawing, stranding, and extrusion processes to guide metal wires and optical fibers while reducing surface damage.

Textile Machinery

Applied for yarn and fiber guidance. The smooth ceramic surface helps reduce fiber wear, fuzzing, and breakage.

Printing and Packaging Equipment

Used as guide rollers for films, paper, and other flexible materials to maintain stable tension control.

Annealing Equipment

Used as wire guide components in annealing systems. Ceramic coatings provide good wear resistance and dimensional stability under demanding conditions.

Selection Guide

When selecting a ceramic coated guide wheel, consider the following factors:

• Wire Material:
  Select suitable surface finish and coating specifications according to materials such as copper, aluminum, steel wire, optical fiber, or textile fibers.
• Operating Speed:
  High-speed applications require accurate balancing and reliable coating adhesion.
• Working Environment:
  Consider temperature, humidity, lubrication, and chemical exposure conditions.
• Installation Dimensions:
  Confirm shaft diameter, outer diameter, groove size, and mounting structure before installation.

CR2004 is suitable for lightweight, high-speed applications. Customized dimensions and coating specifications can be provided according to specific requirements.

Maintenance Recommendations

To maintain optimal performance and extend service life:

• Regularly inspect the guide wheel surface for wear, cracks, or coating damage.
• Clean the surface with soft cloth and neutral cleaning agents.
• Avoid using hard tools that may scratch or damage the ceramic coating.
• Check rotation performance regularly and inspect bearings if abnormal noise or resistance occurs.
• Store the guide wheel in a dry environment away from impact and contamination.

Frequently Asked Questions

What Is the Weight of CR2004 Ceramic Coated Guide Wheel?

The standard weight is approximately 30 g. Actual weight may vary depending on specifications and configuration.

Can the Ceramic Coating Peel Off?

Under normal operating conditions, the coating has strong bonding strength and provides reliable performance. Severe impact or overload operation may cause local coating damage.

What Materials Can It Guide?

CR2004 is suitable for various materials, including:

• Copper wire
• Aluminum wire
• Steel wire
• Optical fiber
• Textile yarn

The appropriate surface finish should be selected according to wire hardness and tension requirements.

How Is the Guide Wheel Installed?

The guide wheel is usually installed through the center bore on a shaft. Proper fitting clearance should be maintained to avoid excessive looseness or stress.

Can Custom Sizes or Coatings Be Provided?

Yes. Customized solutions are available, including dimensions, groove design, and coating specifications. Customers can provide drawings or samples for technical evaluation.
