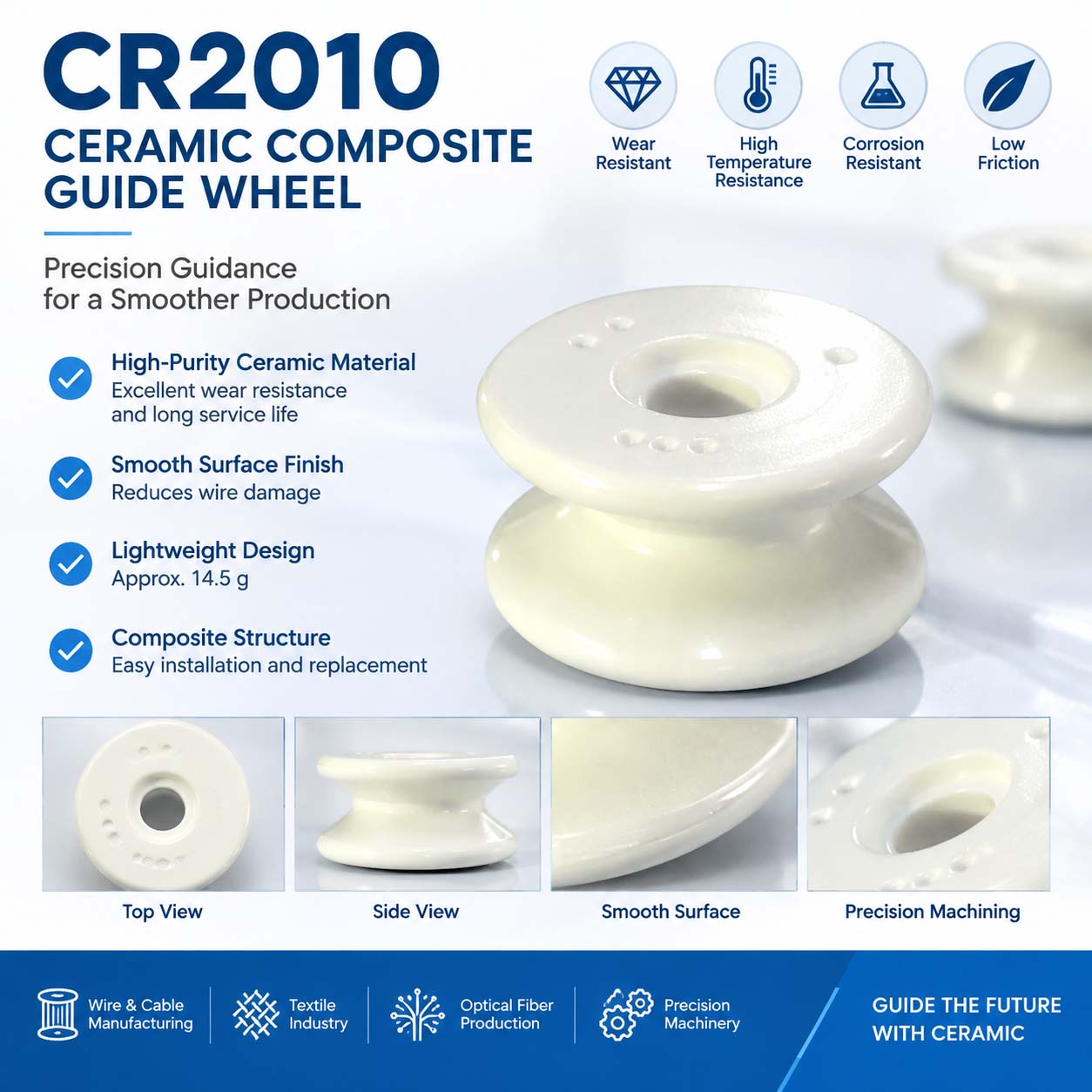

In precision manufacturing, the performance of guide wheels directly affects production stability and product quality. The CR2010 Ceramic Composite Guide Wheel is a lightweight, wear-resistant guiding component designed for tension control and wire guidance systems in industries such as wire and cable, textile, and optical fiber manufacturing.
With a weight of approximately 14.5 g, CR2010 combines lightweight construction with the excellent properties of ceramic materials, providing low-friction operation, stable guiding performance, and long service life.
Product Features and Material Advantages
The main advantages of the CR2010 Ceramic Composite Guide Wheel come from its advanced ceramic material and composite structure.
- High Hardness and Wear Resistance:
Ceramic materials provide excellent hardness and wear resistance, helping reduce friction damage during continuous wire movement. - Smooth Surface Finish:
The low-friction ceramic surface minimizes contact resistance, protects wire surfaces, and improves product quality. - Excellent Chemical Stability:
Ceramic materials are resistant to acids, alkalis, and corrosion, making them suitable for humid and chemically demanding environments. - Lightweight Design:
With a weight of approximately 14.5 g, the guide wheel has low rotational inertia, allowing fast response and stable operation at higher speeds. - Composite Structure:
The combination design allows convenient installation and replacement while maintaining reliable guiding performance.
Main Specifications
- Weight: Approx. 14.5 g
- Material: High-performance ceramic
- Structure: Composite guide wheel / precision tower wheel design
- Applications: Wire, fiber, thin film, and other precision guiding systems
Typical Applications
CR2010 Ceramic Composite Guide Wheels are widely used in precision guiding applications:
Wire and Cable Manufacturing
Used in wire drawing, stranding, and cabling processes to guide copper wire, alloy wire, optical fiber, and other materials with low friction and reduced surface damage.
Textile Industry
Applied in synthetic fiber spinning, yarn transportation, and winding equipment. The smooth ceramic surface helps protect fibers and reduces breakage.
Annealing Equipment
Used as internal guide wheels in annealing systems. Ceramic materials provide good temperature resistance and maintain dimensional stability.
Other Precision Machinery
Suitable for tension control and directional guidance in printing equipment, packaging machinery, medical wire processing, and other precision production lines.
Selection and Installation Guide
When selecting a ceramic guide wheel, consider:
- Wire Diameter and Material:
Choose suitable groove dimensions according to wire type, diameter, and surface requirements. - Operating Speed:
The lightweight design makes CR2010 suitable for medium and high-speed applications with low to moderate tension. - Working Environment:
Consider temperature, humidity, chemicals, and lubrication conditions before selection.
Installation Recommendations
- Ensure accurate fitting between the shaft and bore to prevent excessive runout.
- Inspect the ceramic surface for cracks or chips before installation.
- Avoid impact during installation and use proper tools.
- Assemble composite components according to installation requirements.
- Do not apply excessive tightening force that may damage the ceramic parts.
Maintenance Recommendations
Although ceramic guide wheels have excellent wear resistance, regular maintenance can further extend service life:
- Clean dust, oil, and residue using a soft cloth or compressed air.
- Avoid using metal tools that may scratch the ceramic surface.
- Regularly check rotation performance. Clean or replace bearings if abnormal resistance occurs.
- Store unused guide wheels in a dry and dust-free environment.
Frequently Asked Questions
Is CR2010 Suitable for High-Temperature Applications?
The ceramic material itself has good temperature resistance. However, the actual operating temperature depends on the complete assembly, including bonding materials, bearings, and other components. Please confirm the working temperature range before use.
Does the 14.5 g Weight Include All Accessories?
Normally, the specified weight refers to the guide wheel body only. Actual weight may vary depending on assembly configuration.
Will Ceramic Guide Wheels Rust?
Ceramic materials do not rust. However, metal components such as bearings may require corrosion protection depending on the operating environment.
Can It Be Used in Food or Medical Applications?
Ceramic materials have good chemical stability, but specific applications should meet relevant industry standards. Please confirm requirements before use.
How Can I Know When the Guide Wheel Needs Replacement?
Replacement is recommended when:
- Visible wear grooves appear
- Ceramic edges become chipped
- Rotation becomes unstable
- Abnormal noise occurs during operation
Regular inspection helps maintain stable production performance.
