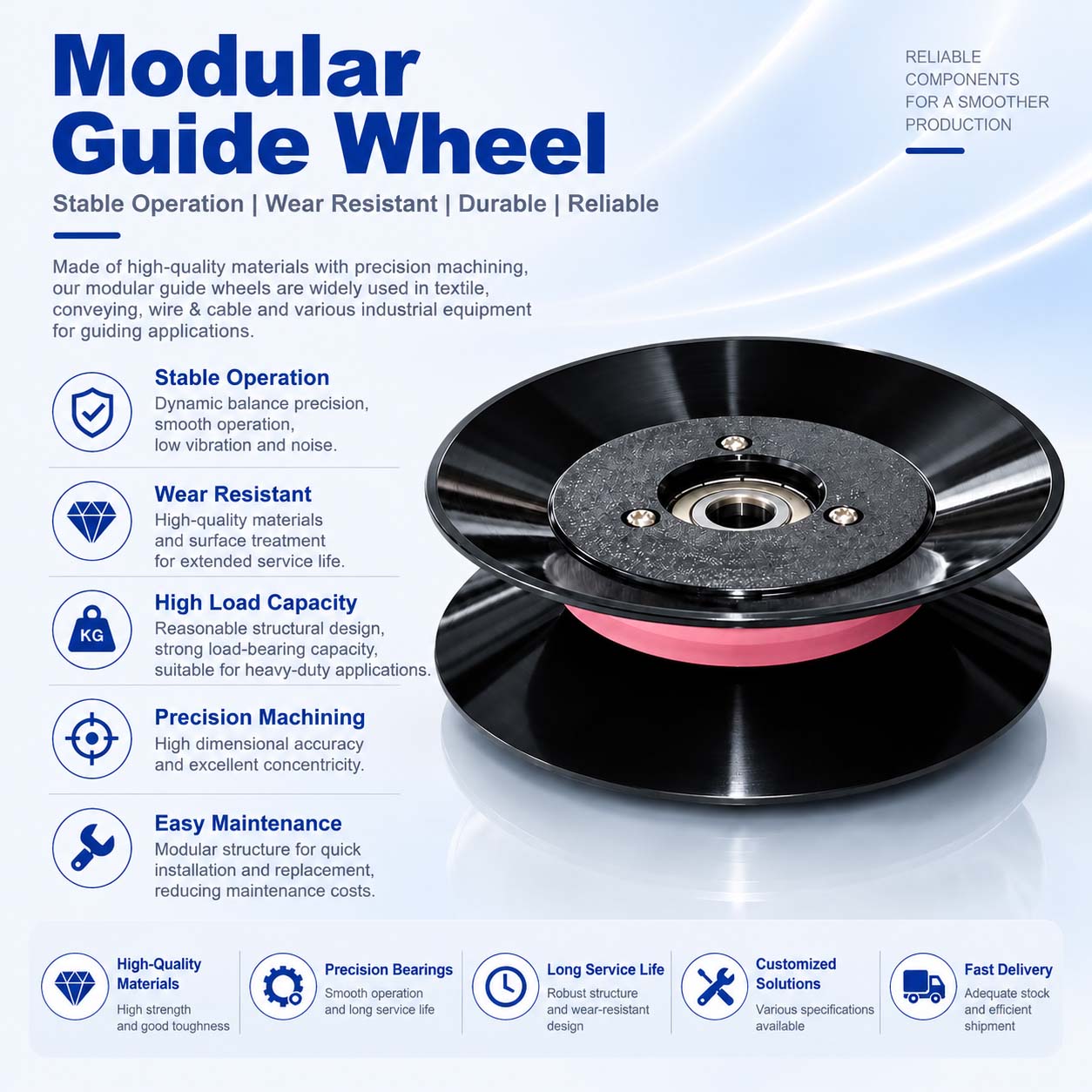

Tungsten Carbide Modular Guide Wheel Assembly

In wire and cable manufacturing, guide wheels are critical components for controlling wire movement and maintaining stable tension. A Modular Guide Wheel Assembly combines a wear-resistant steel ring, such as tungsten carbide or hard alloy, with a wheel body to achieve both mechanical strength and excellent surface hardness.

This structure is especially suitable for high-speed and high-tension production environments where wear resistance and operational stability are essential.

Structure and Materials

A modular guide wheel typically consists of two main parts: the wheel body and the wear-resistant ring.

The wheel body is usually made of steel or aluminum alloy, providing overall structural support. The outer ring is manufactured from high-hardness materials such as tungsten carbide or hard alloy to withstand continuous friction from moving wires.

Tungsten Carbide Ring

Tungsten carbide rings contain a high proportion of carbide particles, providing:

• Extremely high hardness
• Excellent wear resistance
• Long service life
• Stable performance under continuous friction

Depending on the production requirements, the ring can be fixed to the wheel body through heat fitting, press fitting, or bonding.

Some designs also apply additional surface treatments, such as ceramic coating or tungsten carbide coating, to further improve wear resistance and reduce friction.

Applications

Modular guide wheel assemblies are widely used in wire and cable production processes.

Wire Drawing

Used in wire drawing machines to guide metal wires while withstanding high tension and continuous friction.

Stranding

Helps maintain stable positioning of multiple wires during stranding processes and reduces wire vibration.

Extrusion

Used before and after insulation or sheath extrusion to guide cables and prevent surface scratches.

Pay-Off and Take-Up Systems

Used as wire guide rollers to ensure smooth and organized cable movement.

Similar modular guide wheel structures are also widely applied in textile, optical fiber, and other wire-processing industries.

Selection Considerations

When selecting a modular guide wheel, consider the following factors:

Wire Material and Diameter

Different wire materials have different hardness levels and wear characteristics.

For hard wires or alloy wires, tungsten carbide rings are recommended for improved wear resistance.

Speed and Tension

High-speed and high-tension applications require excellent ring durability, precise machining, and good dynamic balance.

Operating Environment

Humid or corrosive environments may require stainless steel wheel bodies or special protective coatings.

Installation Dimensions

Confirm key dimensions including:

• Shaft diameter
• Outer diameter
• Groove profile
• Mounting structure

For applications requiring higher wear resistance or special performance, ceramic guide wheels or advanced hard alloy solutions can also be considered.

Maintenance Recommendations

Proper maintenance can significantly extend guide wheel service life.

Regular Inspection

Check the wear condition of the ring surface. Replace the ring when deep grooves, rough surfaces, or dimensional changes affect wire quality.

Cleaning

Remove wire residue, dust, and oil contamination regularly to prevent surface damage.

Lubrication

Maintain proper bearing lubrication to ensure smooth rotation and prevent vibration caused by bearing failure.

Storage

Store spare guide wheels in a dry, clean environment to prevent corrosion and accidental impact.

In some cases, worn rings can be refurbished through grinding or recoating processes to restore performance.

Frequently Asked Questions

What is the difference between tungsten steel and tungsten carbide rings?

Tungsten steel usually refers to cemented carbide, consisting of tungsten carbide particles with cobalt as the binder phase. Tungsten carbide rings emphasize higher carbide content, providing greater hardness and wear resistance but slightly lower impact toughness.

The best choice depends on wire hardness, speed, and operating conditions.

How long is the service life of a modular guide wheel?

Service life depends on wire material, operating speed, tension, lubrication, and working environment. Under normal conditions, tungsten carbide rings can provide several times longer service life compared with conventional steel rings.

What should I do if the guide wheel produces abnormal noise or vibration?

First check bearing condition and lubrication. Then inspect whether the ring is worn unevenly, loose, or improperly installed. Replace bearings or reinstall the ring if necessary.

Can only the ring be replaced instead of the entire wheel?

Yes. Many modular guide wheels allow separate replacement of the wear-resistant ring. Proper fitting accuracy must be ensured to avoid eccentric rotation or looseness.

When should the ring be replaced?

Replacement is recommended when:

• Deep wear grooves appear
• Surface roughness increases and damages the wire
• Dimensions exceed allowable tolerances
• Wire positioning becomes unstable

Can modular guide wheels be customized?

Yes. Custom solutions are available for wheel diameter, groove profile, shaft hole dimensions, ring material, and surface coating according to equipment requirements.

Customized Tungsten Carbide Guide Wheel Solutions

We provide customized tungsten carbide modular guide wheel assemblies for wire drawing, cable manufacturing, textile, and precision guiding applications.

With optimized materials, precision machining, and advanced surface treatments, our guide wheels provide reliable wear resistance, stable operation, and extended service life in demanding industrial environments.
