Coating Service Overview

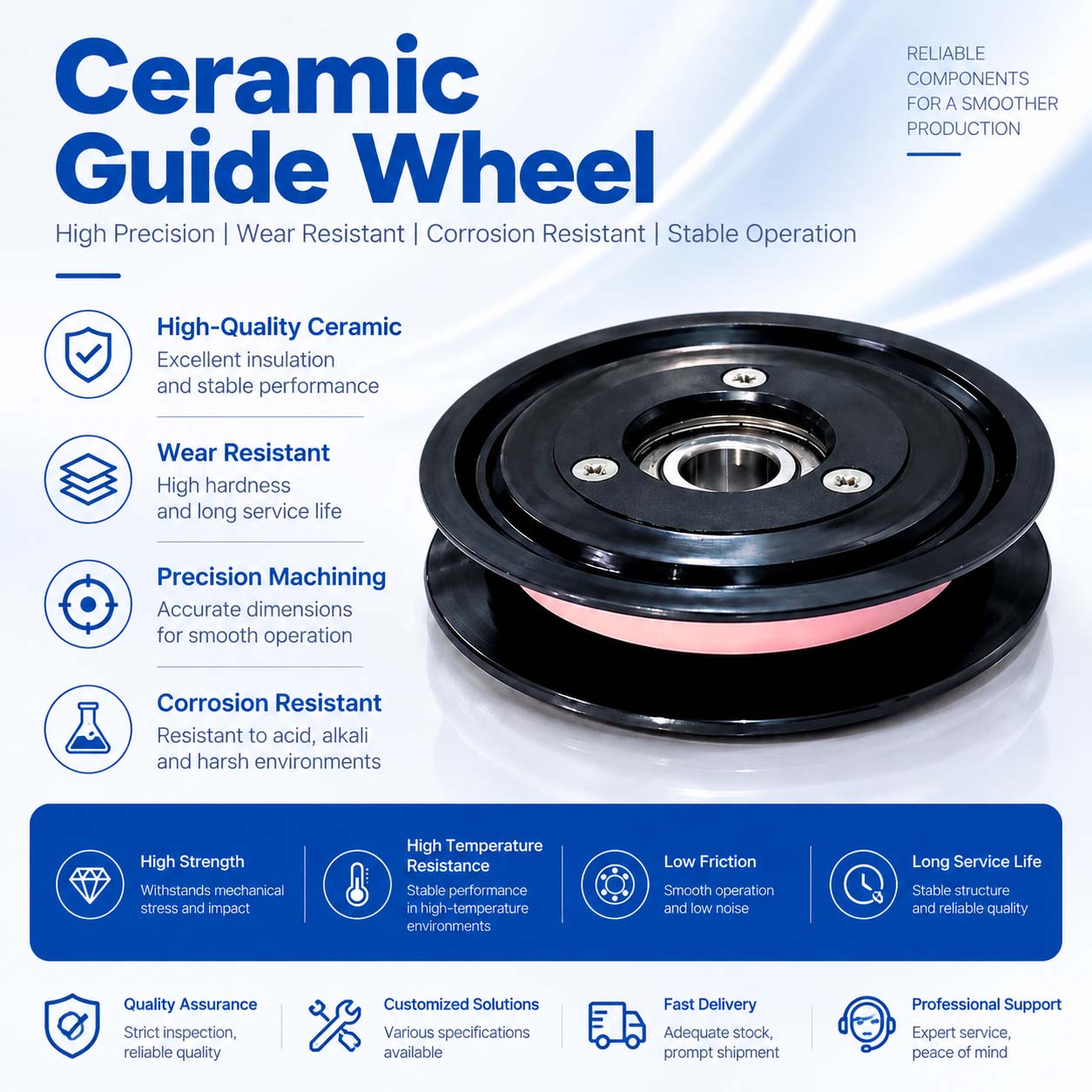

In industrial guiding systems, surface treatment plays an important role in determining component service life and operational stability. The CR1007 Modular Guide Wheel uses advanced zirconia ceramic thermal spray technology to form a dense protective ceramic coating on the substrate surface, providing excellent wear resistance, high-temperature resistance, and electrical insulation.
With a lightweight design of approximately 35 g, CR1007 is suitable for applications requiring enhanced surface protection, stable operation, and long service life. This article introduces its coating technology, applications, selection considerations, and maintenance recommendations.
Zirconia Ceramic Coating Technology
Zirconia (ZrO₂) ceramic coating is a high-performance coating widely used in thermal spray applications.
The coating process generally includes:
- Substrate preparation (degreasing and surface blasting)
- Thermal spray coating process control (such as plasma spray or high-velocity spray technology)
- Post-treatment processes (sealing, grinding, and surface finishing)
After zirconia coating treatment, CR1007 provides the following advantages:
High Temperature Resistance
Zirconia ceramic coatings maintain stable performance under elevated temperatures, making them suitable for guide wheels operating in thermal environments.
Electrical Insulation
The ceramic coating has high electrical resistance and provides effective insulation, helping prevent current conduction and electrical interference.
Wear Resistance
The high hardness coating effectively resists friction from wires, fibers, and other moving materials, extending the service life of the guide wheel.
Chemical Stability
Zirconia ceramic provides good resistance against acids, alkalis, and many chemical substances, making it suitable for demanding industrial environments.
The actual coating performance depends on spray parameters, substrate material, and operating conditions.
Typical Applications
CR1007 modular guide wheels are widely used in industries requiring high-performance surface protection.
Wire and Cable Manufacturing
During wire and cable production, guide wheels are exposed to continuous friction from high-speed conductors. Zirconia ceramic coatings help reduce wear and maintain smooth wire movement.
Textile Machinery
Used in synthetic fiber spinning and textile processes. The ceramic surface reduces friction, improves durability, and helps minimize static-related problems.
Film Stretching Equipment
In plastic film stretching processes, guide wheels require high temperature resistance and a smooth contact surface. Ceramic coatings provide reliable performance under these conditions.
Precision Winding Systems
Suitable for optical fiber, steel wire, and other precision winding applications requiring high surface finish and wear resistance.
The correct application should be evaluated according to line speed, tension, temperature, and operating environment.
Selection and Installation Recommendations
Selection Factors
When selecting CR1007, consider the following:
Substrate Compatibility
Confirm that the guide wheel substrate material, such as steel or aluminum alloy, is suitable for zirconia coating to avoid coating failure caused by thermal expansion differences.
Dimensional Accuracy
After coating, grinding or finishing may be required to achieve final dimensions. Sufficient machining allowance should be considered during selection.
Operating Temperature
Zirconia coatings can withstand high temperatures, but the actual temperature limit depends on coating structure, substrate material, and operating conditions.
Load and Speed
High-speed or high-load applications require evaluation of coating bonding strength, impact resistance, and dynamic balance.
Installation Recommendations
- Inspect the coating surface before installation and ensure there are no cracks or peeling defects.
- Avoid impact or scratching of the coated surface during assembly.
- Use proper installation tools and avoid direct hammering.
- Ensure smooth wheel rotation and proper bearing fit to prevent uneven wear.
Maintenance Recommendations
Proper maintenance can significantly extend the service life of ceramic-coated guide wheels.
Regular Cleaning
Use a soft cloth or brush to remove dust, oil, and material residue. Avoid hard tools that may damage the coating.
Coating Inspection
Regularly check the coating condition for wear, cracks, or local peeling. Repair or replace the component if abnormal damage is found.
Bearing Lubrication
Lubricate bearings according to equipment requirements to prevent abnormal coating wear caused by bearing failure or uneven rotation.
Storage Conditions
When not in use for a long period, store the guide wheel in a dry environment without corrosive gases to prevent coating damage.
Frequently Asked Questions
What is the weight of CR1007 guide wheel?
The CR1007 guide wheel weighs approximately 35 g. The actual weight may vary slightly depending on the specific design.
Is zirconia ceramic coating completely insulated?
Zirconia ceramic coatings provide excellent electrical insulation due to their high electrical resistance. However, insulation performance depends on coating thickness, density, and environmental conditions.
What temperature can the coating withstand?
Zirconia ceramic coatings can generally withstand several hundred degrees Celsius. The actual temperature capability depends on the coating process, substrate material, and application conditions.
Can damaged coating be repaired?
Yes. In many cases, worn or damaged coatings can be removed and reapplied after evaluating the condition of the substrate.
What wire diameters can CR1007 handle?
The applicable wire diameter depends on the groove design and wheel specifications. Customized groove dimensions can be provided according to customer requirements.
How can coating quality be evaluated?
Coating quality can be checked through visual inspection, thickness measurement, bonding strength testing, and microstructure analysis when required.
Customized Zirconia Ceramic Guide Wheel Solutions
We provide customized CR1007 modular guide wheels with zirconia ceramic coating for wire, cable, textile, optical fiber, and precision guiding applications.
Wheel dimensions, groove designs, coating thickness, and surface finishing can be customized to achieve high wear resistance, stable operation, and extended service life under demanding industrial conditions.
