Coating Service Overview
In precision manufacturing industries, guide wheels are essential components in cable, textile, optical fiber, and other production lines. The CR2002 Ceramic Coated Guide Wheel features a lightweight design of only 40g, providing reliable support for high-speed operation and precision wire guiding.
Available in both full ceramic guide wheel and ceramic coated guide wheel designs, the CR2002 meets demanding requirements for wear resistance, corrosion resistance, and surface smoothness.
Product Overview

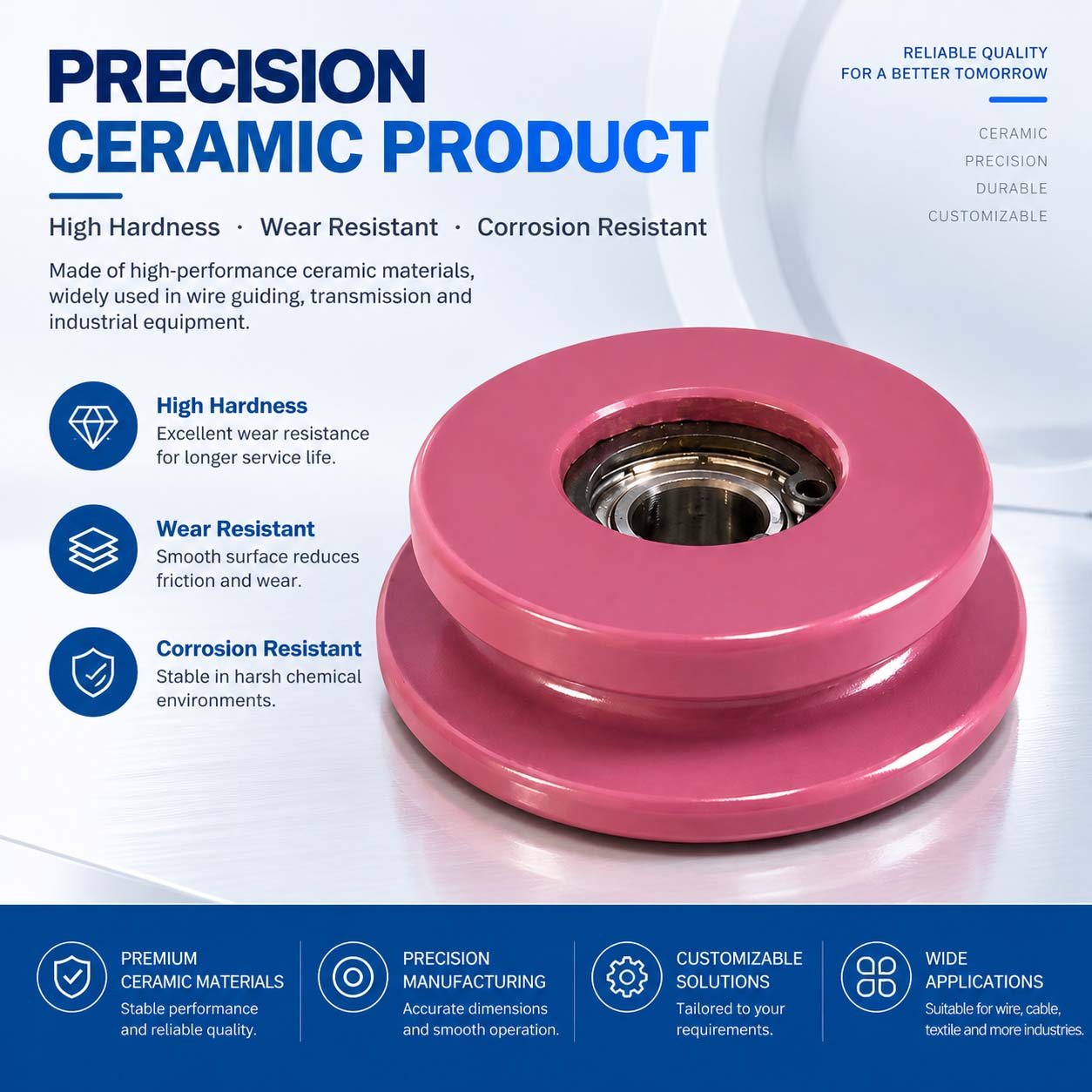

The CR2002 Ceramic Guide Wheel is a precision ceramic component with a weight of approximately 40g.
Two versions are available:
- Full Ceramic Guide Wheel:
The entire wheel is made of ceramic material, providing excellent hardness, uniform performance, and superior wear resistance. - Ceramic Coated Guide Wheel:
A ceramic coating is applied to a metal substrate through thermal spraying technology, combining the toughness of metal with the wear resistance of ceramic.
Product Features and Advantages
Lightweight Design
With a weight of only 40g, the guide wheel reduces rotational inertia and is suitable for high-speed applications.
Excellent Wear Resistance
The ceramic surface provides high hardness and effectively resists friction and wear caused by continuous wire contact.
Corrosion Resistance
Ceramic materials have excellent chemical stability and can withstand humid environments and acidic or alkaline conditions.
Smooth Surface Finish
The low friction coefficient reduces wire damage and improves product surface quality.
Multiple Options
Full ceramic and ceramic coated versions are available to meet different performance requirements and budget considerations.
Applications
The CR2002 Ceramic Guide Wheel is widely used in various industrial applications:
Cable Manufacturing
Used for wire guiding and wire passing processes in cable drawing, stranding, and extrusion equipment.
Textile Machinery
Applied for yarn and fiber guiding, reducing friction and fiber damage.
Optical Fiber Production
Used in tension control and precision guiding systems for optical fiber and cable manufacturing.
Annealing Equipment
Suitable for wire guiding components in annealing equipment requiring stable operation.
Other Precision Applications
Ideal for industries requiring low friction, high wear resistance, and accurate wire guidance.
Selection Guidelines
When selecting the CR2002 guide wheel, consider:
- Wire Material:
Different materials such as metal wire, fiber, and optical fiber require different surface hardness and finish requirements. - Working Environment:
Temperature, humidity, and chemical exposure conditions affect ceramic material selection. - Load and Speed:
The lightweight 40g design provides advantages in high-speed, low-load applications. - Cost Requirements:
Full ceramic wheels offer higher performance, while ceramic coated wheels provide better cost efficiency with improved toughness.
Customized specifications are available according to customer requirements.
Maintenance Tips
To ensure long service life:
- Avoid impact during installation to prevent ceramic cracking.
- Regularly inspect the surface for wear, cracks, or coating damage.
- Clean with a soft cloth and avoid using hard tools that may scratch the surface.
- Store in a dry environment to prevent corrosion of metal substrates on ceramic coated models.
Frequently Asked Questions
What is the weight of the CR2002 guide wheel?
The weight is approximately 40g.
What is the difference between full ceramic and ceramic coated guide wheels?
A full ceramic guide wheel is made entirely of ceramic, offering higher hardness and uniform performance. A ceramic coated guide wheel uses a metal substrate with a ceramic surface layer, providing better toughness and lower cost.
What equipment is the CR2002 suitable for?
It can be used in cable machinery, textile equipment, optical fiber production lines, annealing systems, and other precision guiding applications.
When should the guide wheel be replaced?
Replacement is recommended when visible wear, cracks, surface damage, or coating peeling affects wire quality.
Will the ceramic coating peel off?
Under normal operating conditions, the coating has strong adhesion. Excessive impact or overload operation may cause local coating damage.
Can the CR2002 guide wheel be customized?
Yes. Customized sizes, structures, and quantities are available according to customer drawings or technical requirements.
Conclusion
The CR2002 Ceramic Guide Wheel combines lightweight design, ceramic wear resistance, corrosion protection, and precision manufacturing. It provides a reliable solution for high-speed wire guiding and tension control in cable, textile, optical fiber, and precision manufacturing industries.
