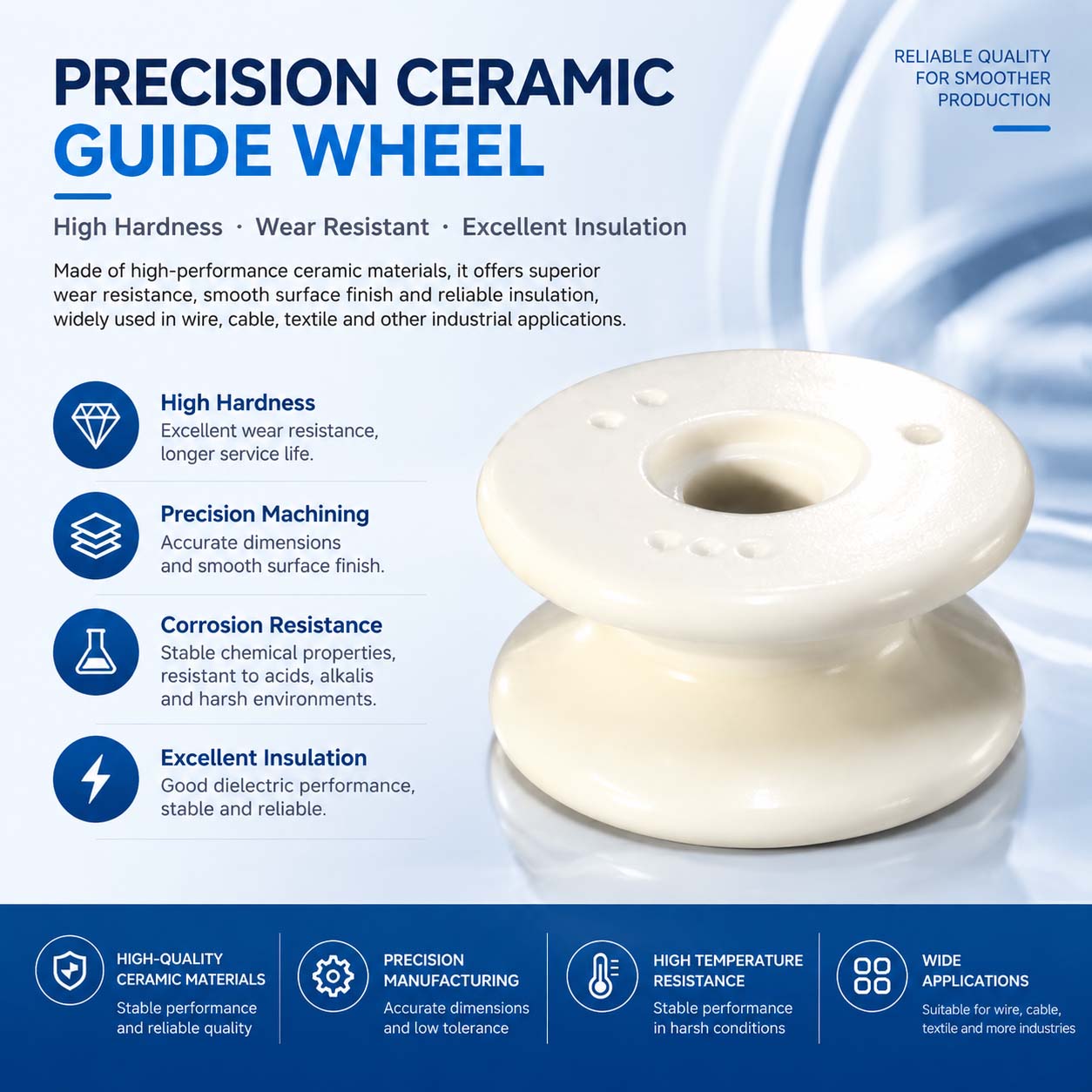

In precision manufacturing industries, the performance of guide wheels directly affects production stability and product quality. The CR2010 Ceramic Composite Guide Wheel is a lightweight, high-wear-resistant guiding component designed for wire, cable, textile, and optical fiber industries.
With an optimized structure and advanced ceramic material, the CR2010 provides reliable tension control and smooth wire guidance. Its lightweight design, with a weight of approximately 14.5g, reduces rotational inertia and improves response performance during high-speed operation.
Product Features and Material Advantages
The CR2010 Ceramic Composite Guide Wheel combines high-performance ceramic materials with a precision composite structure, offering excellent durability and stable operation.
High Wear Resistance
Ceramic materials provide extremely high hardness and excellent surface finish. The low friction coefficient reduces wire wear and prevents surface damage during continuous operation.
Excellent Corrosion Resistance
Ceramic materials are chemically stable and resistant to acids, alkalis, and corrosion, making them suitable for humid or chemically aggressive environments.
Lightweight Design
With a weight of approximately 14.5g, the guide wheel has low rotational inertia, enabling fast response and stable operation at medium and high speeds.
Composite Structure
The combined design allows easy installation and replacement while maintaining accurate guiding performance.
Main Specifications
- Weight: Approx. 14.5g
- Material: High-performance ceramic (specific type available upon request)
- Structure: Ceramic composite guide wheel / precision capstan
- Applications: Wire, fiber, narrow film, and other precision guiding systems
Typical Applications
The CR2010 Ceramic Composite Guide Wheel is widely used in precision guiding applications:
Cable Manufacturing
Used in wire drawing, stranding, and cabling processes to provide low-friction guidance for copper wire, alloy wire, and optical fiber, reducing surface scratches.
Textile Industry
Applied in synthetic fiber spinning and yarn transportation. The smooth ceramic surface protects fibers and reduces breakage.
Annealing Equipment
Used as a wire passing wheel inside annealing equipment. The ceramic material maintains stable dimensions under elevated temperatures.
Other Precision Machinery
Suitable for tension control and wire guidance in printing equipment, packaging machinery, medical wire production, and other precision applications.
Selection and Installation Guidelines
When selecting a guide wheel, consider:
- Wire Material and Diameter:
Choose suitable groove dimensions and material according to wire type, including copper, aluminum, steel, fiber, and other materials. - Operating Speed:
Lightweight ceramic wheels are suitable for medium and high-speed applications. Proper dynamic balance is required. - Installation Dimensions:
Confirm shaft diameter, mounting structure, and overall dimensions before installation. - Working Environment:
Evaluate temperature, humidity, and chemical exposure conditions.
Customized sizes and special structures are available according to customer requirements.
Maintenance Tips
Although ceramic guide wheels have excellent wear resistance, proper maintenance can further extend service life:
- Clean dust and oil contamination regularly with a soft cloth or compressed air.
- Avoid scratching the ceramic surface with metal tools.
- Check rotation performance regularly. Clean the shaft area or replace bearings if abnormal resistance occurs.
- Store in a dry and clean environment during long-term storage.
Frequently Asked Questions
Is the CR2010 suitable for high-temperature applications?
Ceramic materials have excellent heat resistance. However, the maximum operating temperature depends on the complete assembly, including bonding materials and bearings. Please confirm specific requirements before use.
Does the 14.5g weight include accessories?
The stated weight usually refers to the guide wheel body only. Actual weight may vary depending on configuration and accessories.
Can ceramic guide wheels rust?
Ceramic materials do not rust. However, metal components such as shafts or bearings may require corrosion protection depending on the working environment.
Can it be used in food or medical industries?
Ceramic materials have good chemical stability, but applications requiring hygiene certification should be confirmed according to specific industry standards.
When should the guide wheel be replaced?
Replacement is recommended when visible grooves, cracks, edge damage, abnormal noise, or poor rotation performance appear.
Are other models available?
Other ceramic guide wheels and capstan products are available, including CR2002 Ceramic Guide Wheel and CR2004 Ceramic Coated Guide Wheel, which can be selected according to different operating requirements.
Conclusion
The CR2010 Ceramic Composite Guide Wheel combines lightweight design, high wear resistance, corrosion resistance, and precision manufacturing. It provides stable wire guidance and reliable tension control solutions for cable, textile, optical fiber, and other precision industries.
