Coating Service Overview
In metal wire processing and cable manufacturing, guide wheels, shaft sleeves, and other contact components are continuously exposed to wire friction and tension. Without proper surface protection, these parts can wear quickly, affecting production efficiency and product quality.
Tungsten carbide coating technology provides an effective surface enhancement solution by significantly improving hardness, wear resistance, and service life. This article introduces the features and applications of tungsten carbide coated shaft sleeves, cable guide wheels, wire guide wheels, and wire drawing guide wheels.
Coating Material and Thickness
The coating material used in these products is tungsten carbide (WC), a high-hardness engineering material applied to the substrate surface through advanced thermal spray technology.
Typical specifications:
- Coating material: Tungsten carbide
- Coating thickness: 1–1.2 mm
This thickness provides sufficient wear protection while maintaining dimensional accuracy.
The tungsten carbide coating forms a strong bond with the substrate and can withstand continuous friction from high-speed moving wires.
Main Product Types

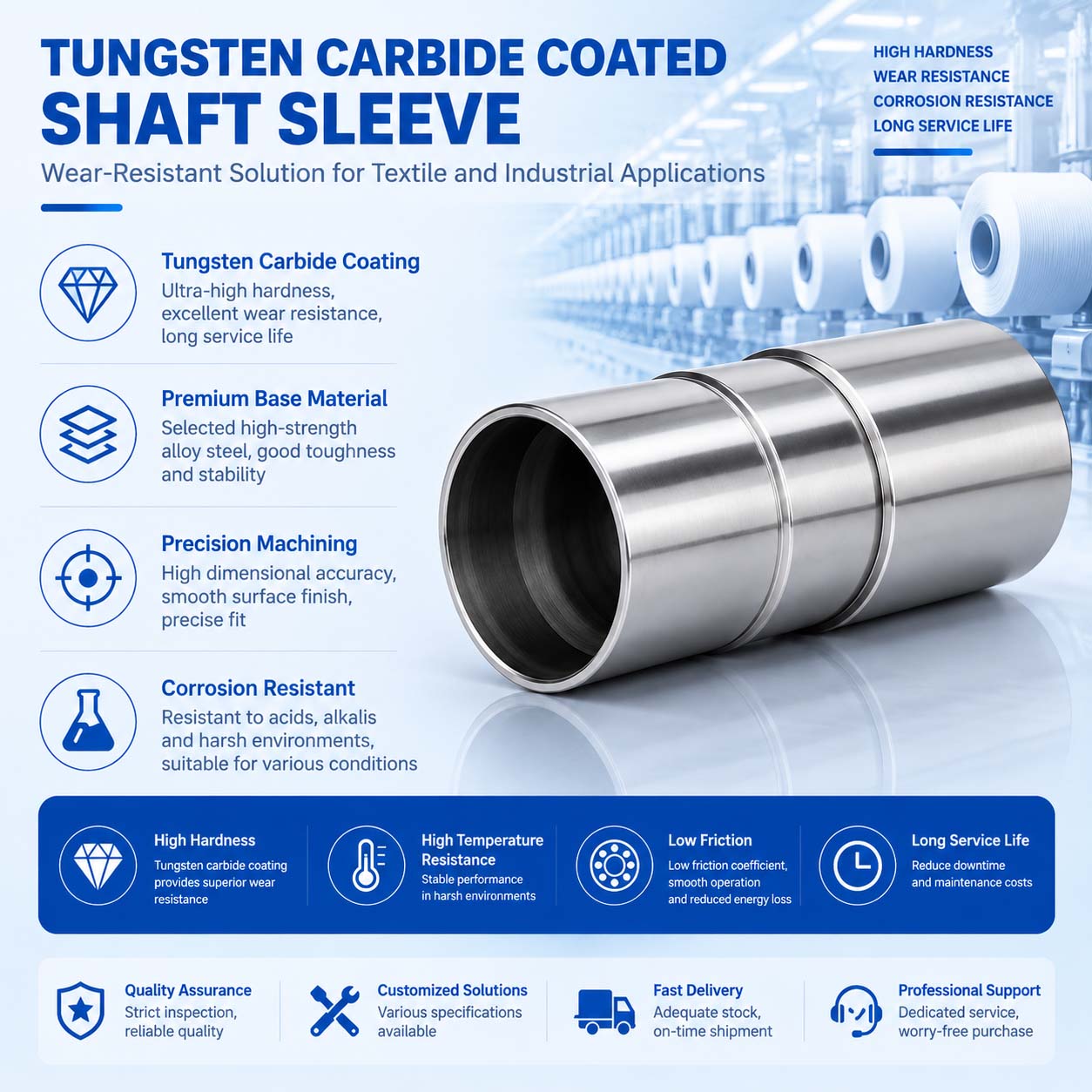

Shaft Sleeve
Shaft sleeves support rotating shafts and reduce wear between the shaft and housing.
Tungsten carbide coated shaft sleeves are suitable for:
- High-load applications
- High-speed operation
- Poor lubrication conditions
They are commonly used in wire drawing machines, stranding machines, and other industrial equipment.
Cable Guide Wheel and Wire Guide Wheel
Cable guide wheels and wire guide wheels control the movement direction of cables and wires during production.
The contact surface requires:
- High wear resistance
- Smooth finish
- Stable groove geometry
Tungsten carbide coatings maintain a durable and smooth groove surface, reducing friction and preventing damage to cable insulation.
Wire Drawing Guide Wheel
Wire drawing guide wheels are critical components in drawing machines and directly contact high-speed metal wires.
The tungsten carbide coating provides:
- Excellent resistance to abrasive wear
- Stable groove accuracy
- Improved wire surface quality
- Longer service intervals
Applications
Tungsten carbide coated components are widely used in metal wire and cable industries, including:
- Steel wire, copper wire, and aluminum wire drawing
- Power cable and communication cable manufacturing
- Steel rope and steel cord production
- Enamel wire and wrapped wire processing
In equipment such as:
- Wire drawing machines
- Stranding machines
- Cable forming machines
- Winding machines
tungsten carbide coated guide wheels and shaft sleeves improve operating stability, reliability, and production efficiency.
Selection and Maintenance Recommendations
When selecting tungsten carbide coated components, consider:
- Wire material
- Wire diameter
- Operating speed
- Tension requirements
- Working environment
Tungsten carbide coatings are suitable for both dry and wet wire drawing processes. However, strong acidic or alkaline environments should be avoided.
During installation:
- Ensure smooth rotation of guide wheels.
- Maintain proper shaft sleeve clearance.
- Check alignment to prevent uneven wear.
For maintenance:
- Regularly inspect coating wear.
- Replace components if coating peeling or substrate exposure occurs.
- Keep guide wheel surfaces clean to prevent foreign particles from scratching the wire.
Frequently Asked Questions
Is a 1–1.2 mm tungsten carbide coating thick enough for wear resistance?
Yes. Due to the extremely high hardness of tungsten carbide, this coating thickness can provide long service life under normal operating conditions.
Actual service life depends on wire material, speed, tension, and operating environment.
Will tungsten carbide coating peel off?
Thermal spray tungsten carbide coatings have strong bonding strength with the substrate and normally do not peel off under proper operation.
However, severe impact, excessive load, or substrate deformation may damage the coating.
Can these guide wheels be used for wet wire drawing?
Yes. Tungsten carbide coatings have good water resistance and compatibility with many drawing lubricants.
The lubricant pH value should be controlled to avoid strong acidic or alkaline conditions.
Can shaft sleeves and guide wheels be customized?
Yes. Customized solutions are available according to customer drawings or samples, including:
- Substrate material
- Coating thickness
- Dimensions
- Groove design
How can I determine whether the coating needs replacement?
Inspection is recommended when:
- Deep grooves appear on the guide wheel surface
- Wire scratches increase
- Shaft sleeve clearance becomes excessive
- Vibration occurs during operation
If the remaining coating thickness is insufficient or the substrate is exposed, replacement is recommended.
What are the advantages of tungsten carbide coating compared with ceramic coating?
Tungsten carbide coatings provide:
- Better toughness
- Higher impact resistance
- Excellent wear resistance
They are suitable for applications involving vibration or impact.
Ceramic coatings generally provide higher hardness and temperature resistance but are more brittle. The best choice depends on the specific working conditions.
Customized Tungsten Carbide Coating Solutions
We provide customized tungsten carbide coated shaft sleeves, cable guide wheels, and wire drawing guide wheels for wire, cable, textile, and precision industrial applications.
Through advanced thermal spray technology and precision machining, our products deliver excellent wear resistance, stable performance, and extended service life in demanding production environments.
