Coating Service Overview
In wire and cable manufacturing, wire drawing, and textile industries, guide wheels, wire guide rollers, and shaft sleeves are continuously exposed to wire friction. Their wear resistance directly affects production efficiency, product quality, and equipment maintenance costs.
Using chromium oxide coating technology or full ceramic structures, guide wheels and shaft sleeves can achieve longer service life, reduced wear, and improved operating stability.
This article introduces the product features, applications, selection guidelines, and maintenance recommendations.
Product Types and Features

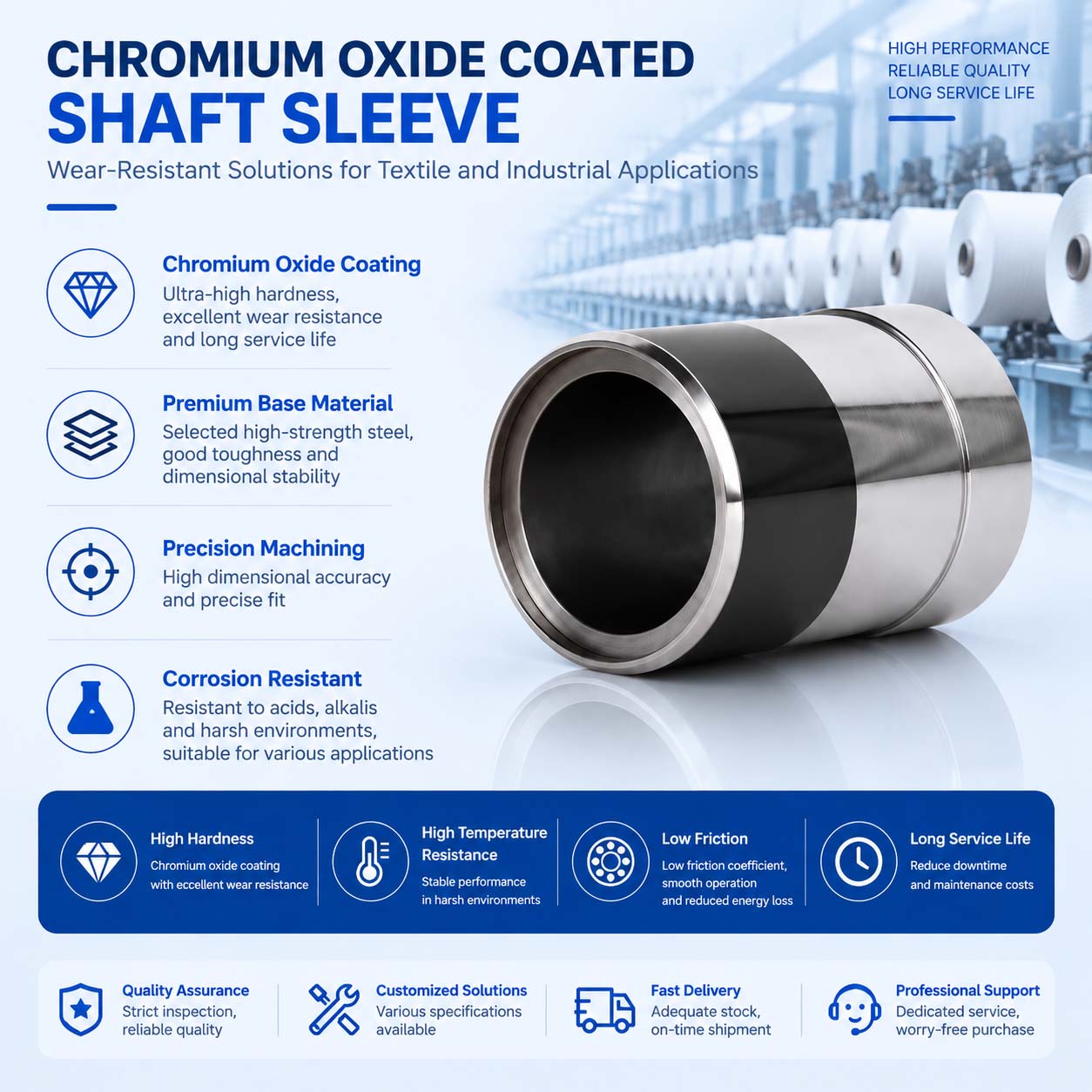

Chromium Oxide Coated Shaft Sleeve and Guide Wheel
Chromium oxide (Cr₂O₃) coating is applied to the surface of metal components through thermal spray technology.
Typical coating specifications:
- Coating material: Chromium oxide
- Coating thickness: 0.2–0.3 mm
Main advantages:
- High surface hardness
- Low friction coefficient
- Excellent resistance to sliding wear and micro-wear
- Strong bonding with the substrate
Chromium oxide coated shaft sleeves and guide wheels are suitable for medium-load applications where stable wear resistance and dimensional accuracy are required.
Full Ceramic Guide Wheel (Zirconia Ceramic Wire Guide Wheel)
Full ceramic guide wheels are typically made from zirconia (ZrO₂).
They provide:
- Extremely high hardness
- Excellent wear resistance
- Superior corrosion resistance
- Electrical insulation
- Non-magnetic properties
The smooth zirconia surface minimizes wire damage and is especially suitable for high-speed, high-tension, and corrosive environments in precision winding and wire drawing processes.
Typical Applications
Wire Drawing Machine Guide Wheels and Capstan Wheels
Used for guiding and tension control during metal wire drawing.
Chromium oxide coated wheels and full ceramic guide wheels help reduce wire scratches, improve surface quality, and extend component life.
Cable and Wire Guide Wheels
Used in cabling and stranding equipment.
Coated guide wheels reduce wear caused by cable tension and weight, helping maintain stable cable surface quality.
Enameling Machine and Winding Machine Guide Wheels
Enamel wire production requires extremely smooth contact surfaces.
Full ceramic guide wheels help prevent enamel coating damage and maintain consistent wire quality.
Textile Wire Guide Wheels
Used in synthetic fiber and textile processing.
Ceramic wire guide wheels provide excellent wear resistance and reduce static-related wire breakage.
Shaft Sleeves
Used in sliding bearing applications.
Chromium oxide coated shaft sleeves can replace some traditional metal sleeves, reducing friction and improving wear resistance while reducing lubricant dependence.
Selection Guidelines
When selecting guide wheels or shaft sleeves, consider:
Wire Material and Diameter
- Hard materials such as steel wire are better suited to full ceramic guide wheels.
- Softer materials such as copper and aluminum can use coated guide wheels for a balance of performance and cost.
Operating Speed and Tension
High-speed and high-tension applications generally require full ceramic guide wheels due to their excellent wear resistance and surface stability.
Working Environment
For humid or corrosive environments:
- Full ceramic wheels provide better corrosion resistance.
- Coated wheels should have dense, high-quality coatings with strong protection performance.
Installation Dimensions
Confirm:
- Inner diameter
- Outer diameter
- Groove design
- Mounting structure
Customized solutions can be provided according to drawings or samples.
Cost Considerations
Coated guide wheels usually have a lower cost than full ceramic wheels while still providing excellent wear protection for many industrial applications.
Maintenance Recommendations
To extend service life:
- Regularly inspect groove wear and coating condition. Replace components when severe wear or coating damage appears.
- Clean oil, dust, and wire residue regularly using a soft cloth. Avoid hard tools that may scratch the surface.
- Apply suitable lubrication to coated shaft sleeves during installation and operation when required.
- Store unused components in a dry, clean environment and avoid impact that may damage ceramic parts or coatings.
Frequently Asked Questions
Will chromium oxide coating peel off?
Under normal operating conditions, chromium oxide coatings have strong bonding strength and are not easily detached.
However, severe impact, overload operation, or improper installation may cause local coating damage. Avoid impact during assembly and prevent foreign particles from entering operating areas.
Are full ceramic guide wheels easy to break?
Zirconia ceramic has higher fracture toughness and impact resistance than traditional ceramics. However, strong impacts should still be avoided. Under proper operating conditions, zirconia guide wheels can provide much longer service life than conventional metal wheels.
Can the 0.2–0.3 mm coating thickness be customized?
Yes. This thickness range is commonly used, but it can be adjusted according to specific operating requirements.
How should the guide wheel groove be selected?
The groove design depends on wire diameter and shape.
Common groove types include:
- V groove
- U groove
- Flat groove
Providing wire specifications and tension requirements helps determine the optimal groove design.
Are samples available for testing?
Yes. Standard samples can be provided for performance testing. Customized products require technical evaluation before production.
What is the delivery time?
Standard products may be available from stock. Customized products usually require approximately 2–4 weeks, depending on quantity and processing requirements.
Customized Ceramic and Coated Component Solutions
We provide customized chromium oxide coated shaft sleeves, ceramic guide wheels, and wire guide components for wire, cable, textile, and precision manufacturing industries.
Through advanced coating technology and precision machining, our products deliver excellent wear resistance, stable operation, and extended service life in demanding industrial environments.
