Coating Service Overview
In metal wire processing, guide wheels, capstan wheels, and drawing rings are critical components that directly affect wire quality and production efficiency. During long-term operation, surface wear, groove damage, and corrosion can lead to wire breakage, scratches, and unstable production.
Through professional surface treatment and wear-resistant coating technologies, these components can achieve significantly improved service life and operating stability.
This article introduces coating solutions, selection guidelines, and maintenance recommendations for modular guide wheels, capstan wheel rings, and wire drawing rings.
Common Guide Wheel and Ring Types
According to structure and application, common components include:

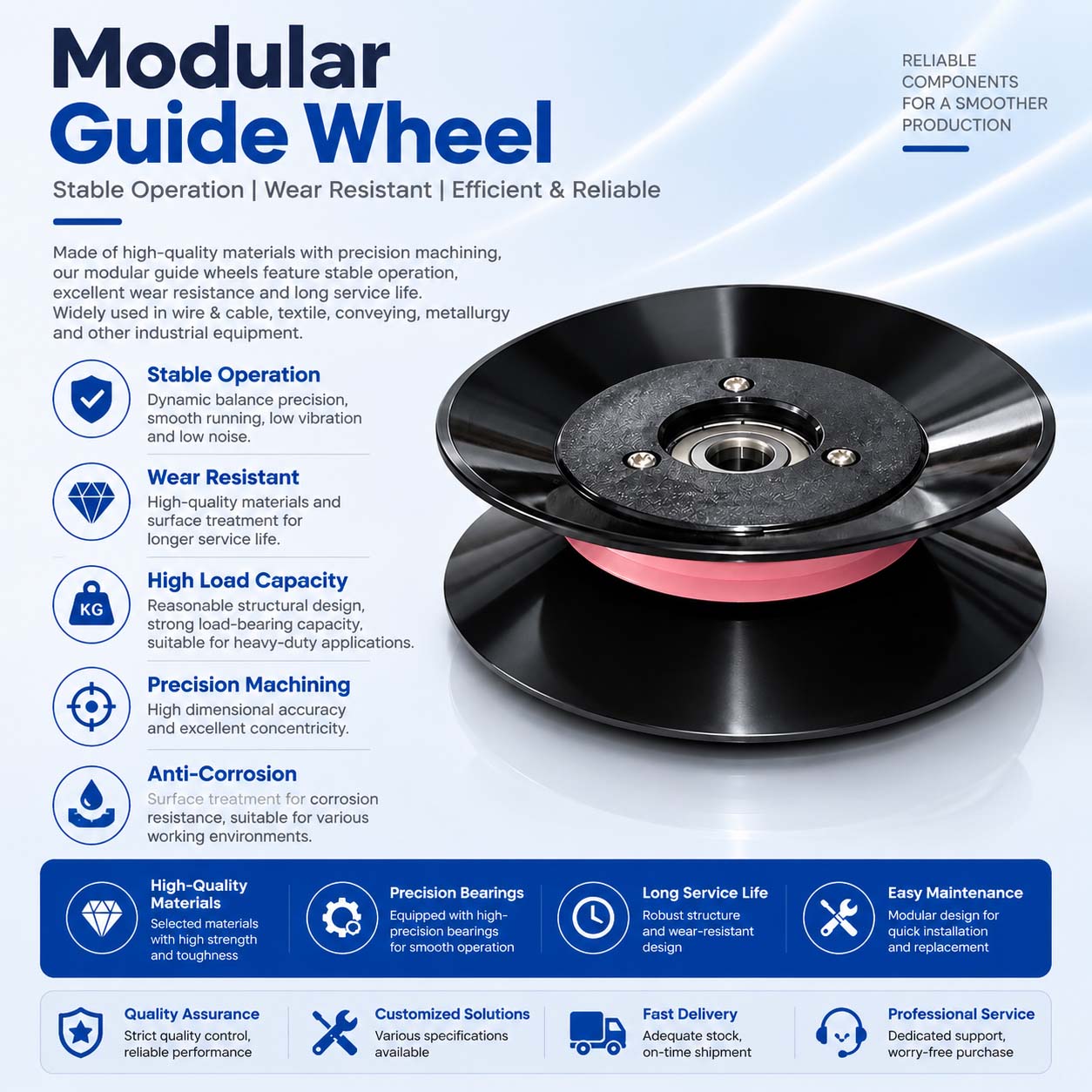

Modular Guide Wheel Assembly
A modular guide wheel consists of a wheel body, bearings, shaft, and replaceable wear-resistant rings. The design allows easier maintenance and is widely used in wire drawing machines, stranding machines, and cable processing equipment.
Capstan Wheel Ring
The capstan wheel ring is the key contact component of a capstan system. It withstands continuous high-speed wire friction and requires excellent hardness and wear resistance.
Tungsten carbide rings are commonly used because of their high hardness and long service life.
Wire Drawing Ring
Wire drawing rings are used in drawing machines and guiding systems. They require a smooth surface, high wear resistance, and stable dimensional accuracy.
Haul-Off Wheel Assembly
Used for continuous wire pulling and tension control, haul-off wheels require strong gripping performance, wear resistance, and stable operation.
Wear-Resistant Coating Technologies
Different coating technologies can be selected according to operating conditions.
Tungsten Carbide Coating
Tungsten carbide coating provides extremely high hardness and excellent abrasion resistance.
With hardness typically exceeding HV1200, it is suitable for:
- High-speed wire drawing
- High-tension applications
- Steel wire and metal wire processing
Tungsten carbide coatings are usually applied using advanced thermal spray technologies such as HVOF (High Velocity Oxygen Fuel) or plasma spraying.
Advantages include:
- High bonding strength
- Low porosity
- Excellent wear resistance
- Extended replacement cycles
Ceramic Coating
Ceramic coatings such as chromium oxide and alumina provide:
- High-temperature resistance
- Corrosion resistance
- Electrical insulation
- Low friction performance
They are suitable for special wire materials, humid environments, and applications requiring insulation.
Zirconia ceramic guide wheels also provide excellent surface stability and reduced wire damage.
Alloy Coating
Nickel-based and cobalt-based alloy coatings provide a balance of wear resistance, corrosion protection, and cost efficiency.
They are suitable for general industrial applications and can also be used for groove repair and dimension restoration of worn guide wheels.
Selection Guidelines
Choosing the correct coating depends on several factors:
Wire Material
- Hard materials such as steel wire require tungsten carbide coatings for maximum wear resistance.
- Softer materials such as copper and aluminum may benefit from ceramic or alloy coatings to prevent surface damage.
Operating Speed
High-speed applications require coatings with:
- Strong bonding strength
- Excellent surface finish
- Good dynamic balance
HVOF tungsten carbide coatings are often recommended for demanding high-speed conditions.
Working Environment
For humid or corrosive environments, ceramic coatings or corrosion-resistant alloy coatings provide better protection.
Cost Requirements
- Tungsten carbide coatings provide the longest service life but have higher costs.
- Alloy coatings offer a more economical solution for medium-load applications.
Maintenance Recommendations
Proper maintenance helps maximize component life.
Regular Inspection
Check the guide wheel surface regularly. Replace or refurbish components when:
- Deep grooves appear
- Surface roughness increases
- Wire quality is affected
Cleaning
Remove wire residue, dust, and oil contamination to prevent abnormal wear caused by embedded particles.
Lubrication
Maintain proper bearing lubrication to ensure smooth rotation and prevent localized wear.
Repair Evaluation
Before recoating, inspect the substrate condition. Components with severe deformation or cracks may not be suitable for repair.
Modular guide wheel designs allow replacement of only the worn ring, reducing maintenance costs and downtime.
Frequently Asked Questions
Will tungsten carbide coating peel off?
Under normal operating conditions, thermal spray tungsten carbide coatings have strong bonding strength and are not easily detached. Poor surface preparation, excessive impact, or overload operation may cause local damage.
Can worn capstan rings be repaired?
Yes. Worn rings can often be refurbished by removing the damaged surface layer, restoring dimensions through machining, and applying a new wear-resistant coating.
How do I choose between ceramic and tungsten carbide coatings?
- Tungsten carbide coating: Best for high wear resistance and metal wire processing.
- Ceramic coating: Better for high-temperature resistance, insulation, and corrosive environments.
The optimal solution depends on the actual operating conditions.
What are the advantages of modular guide wheels?
The modular design allows replacement of individual wear parts instead of the complete wheel assembly. Different ring materials and coatings can also be selected for different wire processing requirements.
How long is the service life of coated guide wheels?
Service life depends on wire material, speed, tension, lubrication, and operating environment. Tungsten carbide coated rings can typically provide several times longer service life than uncoated steel rings under suitable conditions.
When should a guide wheel be replaced or repaired?
Replacement or repair should be considered when:
- Continuous wire scratches appear
- Wire breakage increases
- Visible grooves develop on the wheel surface
- Surface roughness exceeds acceptable limits
Regular measurement of groove dimensions can help predict service life and prevent unexpected downtime.
Customized Wear-Resistant Coating Solutions
We provide customized wear-resistant coating solutions for modular guide wheels, capstan wheels, drawing rings, and wire processing components.
Available technologies include tungsten carbide coating, ceramic coating, and alloy coating, helping customers achieve improved wear resistance, corrosion protection, and long-term stable operation in demanding industrial environments.
