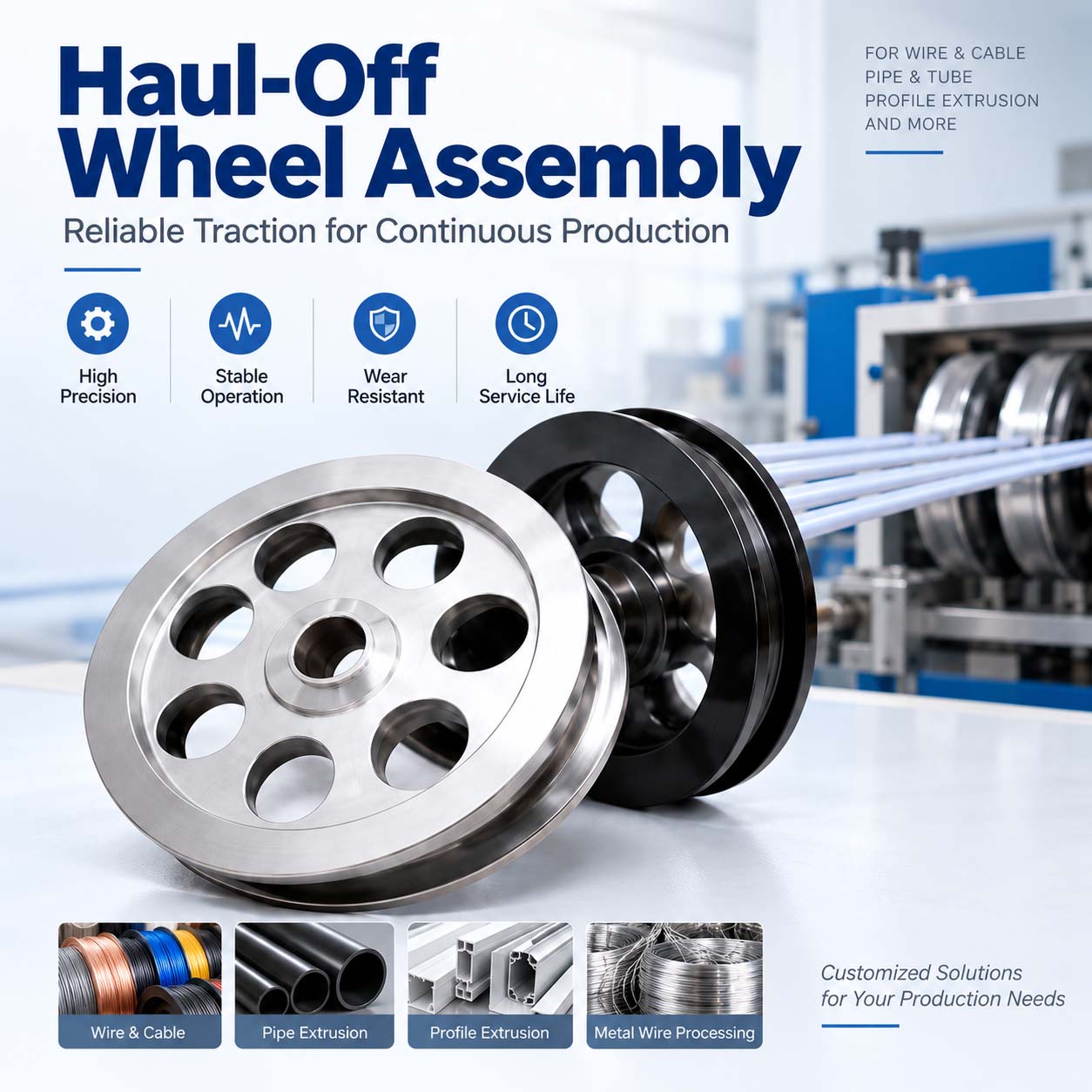

Haul-Off Wheel Assembly

In continuous production lines for wire and cable, pipes, profiles, and metal wire, the Haul-Off Wheel Assembly plays an important role in stable traction and precise material conveying. It usually consists of multiple wheels working together to maintain consistent line speed, prevent slippage, and reduce surface damage to the material.

Structure and Features

A haul-off wheel assembly typically consists of drive wheels, driven wheels, bearing housings, shafts, and support structures. The wheels are commonly made of high-quality steel or alloy materials. Depending on operating conditions, the wheel surface can be hardened or coated with wear-resistant materials to improve service life.

Double-wheel, triple-wheel, and multi-wheel configurations are available. Increasing the contact angle between the wheels and the material helps provide higher and more stable traction.

Main advantages include:

• High Traction: Multiple wheels increase contact and friction, helping prevent slippage.
• Excellent Wear Resistance: Ceramic or tungsten carbide coatings are available for high-speed and high-tension applications.
• Stable Operation: Precision machining and dynamic balancing help reduce vibration.
• Customizable Design: V-groove, U-groove, flat groove, and other profiles can be customized for different materials.

Typical Applications

Haul-off wheel assemblies are widely used in:

• Wire and Cable Production: For pulling conductors, insulated wires, and cable jackets after extrusion.
• Pipe Extrusion Lines: For continuous traction of plastic and rubber tubes.
• Profile Extrusion: Suitable for sealing strips, plastic profiles, and other continuously extruded products.
• Metal Wire Processing: Used in wire drawing, coating, plating, and take-up production lines.

For reliable operation, the wheel assembly should match the production line speed and provide sufficient resistance to wear, heat, and corrosion.

How to Select the Right Haul-Off Wheel

Wheel Diameter and Groove Design

Wheel diameter should be selected according to the material diameter, required line speed, and minimum bending radius. Groove design must match the material profile to avoid deformation, scratching, or excessive pressure.

Common groove types include V-grooves, U-grooves, and flat grooves.

Surface Coating Options

Different surface treatments can be selected according to operating conditions:

• Ceramic Coating: High hardness and excellent wear resistance, suitable for high-speed wire and cable production.
• Tungsten Carbide Coating: Provides outstanding wear resistance for metal wire and high-load applications.
• Zirconia Ceramic Coating: Offers good heat resistance and electrical insulation for special working environments.

Load and Line Speed

The maximum operating tension, rotational speed, and continuous working time should be considered when selecting the wheel material, bearing type, shaft strength, and coating.

Maintenance

Proper maintenance helps extend the service life of the haul-off wheel assembly.

• Clean the Grooves Regularly: Remove dust, coating residue, and other contaminants to prevent slipping and scratching.
• Inspect Wheel Wear: Uneven groove wear may reduce traction or cause material misalignment.
• Lubricate Bearings: Apply suitable grease at recommended intervals to prevent overheating, noise, or bearing failure.
• Check Fasteners: Inspect bolts, shafts, and supports regularly to avoid vibration caused by looseness.

Common problems include:

Slippage: Check wheel surface wear, contact pressure, and production line tension. Replace or recoat worn wheels if necessary.

Abnormal Noise: Usually caused by worn bearings, insufficient lubrication, or incorrect installation.

Material Misalignment: Check the parallel alignment of the wheel assembly and inspect the groove for uneven wear.

FAQ

What materials can the haul-off wheel assembly handle?

It is suitable for wires, cables, plastic pipes, rubber tubes, metal wires, profiles, and other continuously extruded or drawn products.

When should the wheel be replaced?

Replacement or recoating is recommended when groove wear exceeds the allowable tolerance, the coating begins to peel, or traction performance decreases significantly.

What surface coatings are available?

Common options include ceramic coatings, tungsten carbide coatings, and zirconia ceramic coatings. The appropriate coating can be selected according to wear resistance, temperature resistance, corrosion resistance, and insulation requirements.

What are the advantages of a multi-wheel assembly?

Compared with a single wheel, a multi-wheel configuration provides a larger contact angle and more stable traction, making it especially suitable for high-tension and high-speed production lines.

Can custom groove profiles be supplied?

Yes. Non-standard groove shapes, wheel dimensions, materials, and surface coatings can be customized according to drawings, samples, and operating requirements.

Custom Haul-Off Wheel Solutions

We provide customized haul-off wheels and wheel assemblies for wire, cable, pipe, profile, and metal wire production equipment. Wheel dimensions, groove profiles, base materials, surface coatings, and operating parameters can be manufactured according to customer drawings and specific application requirements.
