Coating Service Overview
In metal wire processing, the medium wire drawing machine plays an important role between rough drawing and fine drawing processes. The wear resistance of its key components, such as steel rings, capstans, and guide rollers, directly affects production efficiency and wire quality.

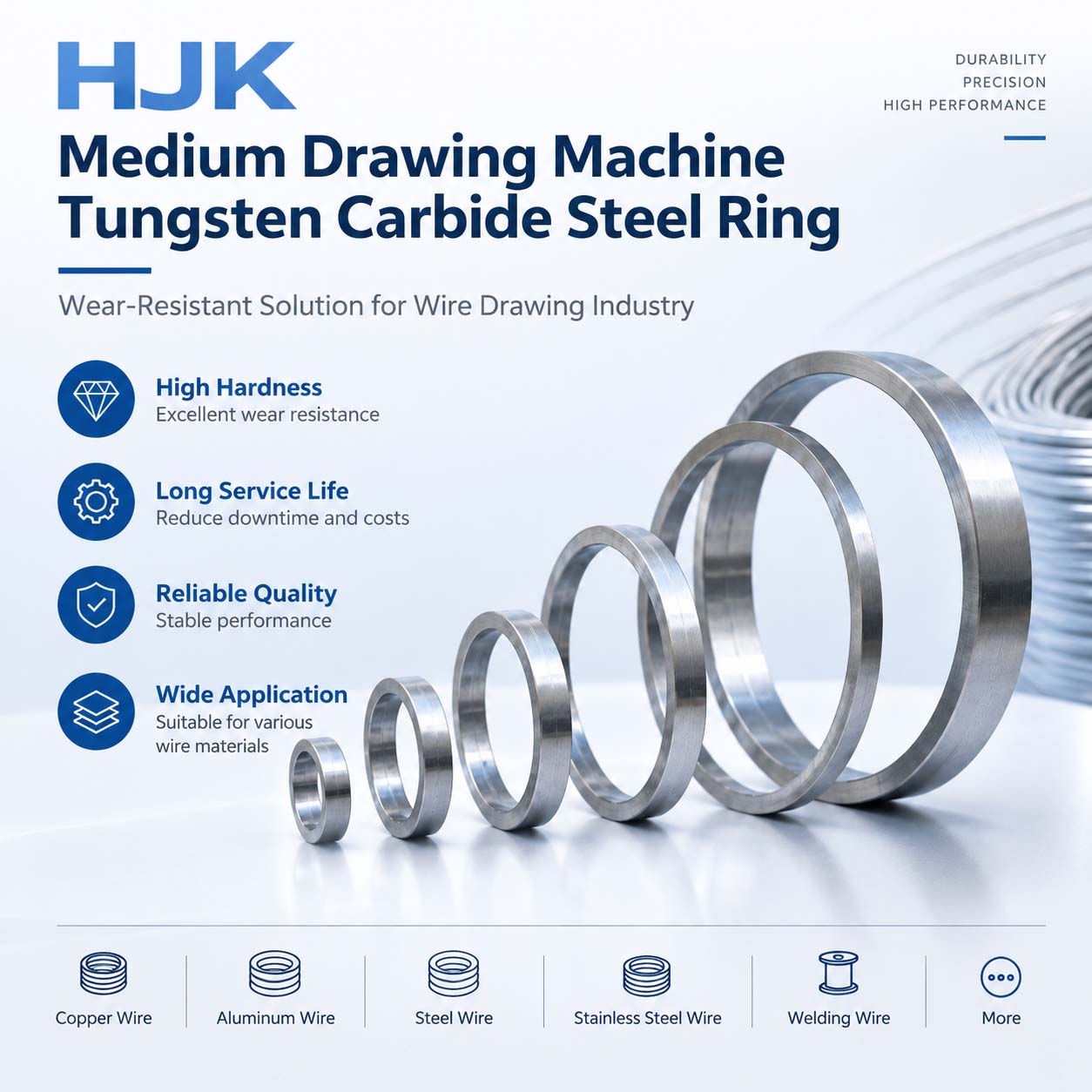

HJK Medium Wire Drawing Machine Tungsten Carbide Rings use advanced tungsten carbide coating technology on the surface of the steel substrate, significantly improving hardness, wear resistance, and corrosion resistance. They are widely used by wire and cable manufacturers as a reliable wear-resistant solution.
This article introduces the product features, applications, selection methods, maintenance, and common questions about tungsten carbide rings.
Product Features and Advantages
HJK Tungsten Carbide Rings combine the toughness of the steel substrate with the excellent hardness of tungsten carbide coating.
High Wear Resistance
The tungsten carbide coating provides excellent resistance against continuous friction from wire materials, greatly extending service life.
Excellent Corrosion Resistance
The dense coating protects the ring from lubricants, cooling fluids, and humid working environments.
Smooth Surface Finish
Precision machining ensures a smooth surface with low roughness, reducing wire scratches and improving finished wire quality.
Stable Dimensions
Strict control of coating thickness and uniformity ensures accurate wire diameter and stable drawing performance.
Repairable Performance
Worn rings can be refurbished by removing the old coating, reapplying tungsten carbide, and precision grinding, reducing replacement costs.
Applications
HJK Tungsten Carbide Rings are widely used in medium wire drawing machines for various metal wires, including:
- Copper wire and copper alloy wire
- Aluminum wire and aluminum alloy wire
- Low carbon steel wire and stainless steel wire
- Galvanized wire and welding wire
They are commonly used in industries such as wire and cable manufacturing, welding materials, and metal products. The improved wear resistance helps reduce downtime and increase production efficiency.
Selection and Installation
Selection Guidelines
When choosing a tungsten carbide ring, consider:
- Machine Compatibility:
Confirm the ring size, shaft hole, keyway, and installation dimensions according to the drawing machine model. - Wire Material:
Select suitable coating thickness and substrate material according to wire hardness and drawing force. - Working Conditions:
Drawing speed, lubrication system, and operating environment should be considered when selecting the coating type.
Installation Tips
- Check the ring surface for damage before installation.
- Clean the shaft hole and mounting surface.
- Ensure proper fitting between the ring and shaft to prevent vibration or runout.
- Install according to equipment requirements to avoid loosening during operation.
Maintenance and Refurbishment
Proper maintenance can significantly extend the service life of tungsten carbide rings:
- Regularly inspect coating wear. Replace or refurbish the ring when deep grooves or wire diameter deviations occur.
- Keep the lubrication system clean to prevent particles from damaging the coating surface.
- Store spare rings in dry conditions and avoid impact damage.
Worn tungsten carbide rings can be refurbished by removing the damaged coating, applying a new tungsten carbide layer, and precision grinding back to the original dimensions. Refurbished rings can recover most of their original performance while reducing overall costs.
Frequently Asked Questions
Will the tungsten carbide coating peel off?
Under normal operating conditions and proper installation, the coating has strong bonding strength and is not easy to peel. Severe impact or overload operation may cause local damage.
When should the ring be replaced?
Replacement or refurbishment is recommended when coating wear becomes significant, wire surface scratches appear, or wire diameter accuracy cannot be maintained.
Are tungsten carbide rings suitable for all medium wire drawing machines?
They are mainly designed for HJK medium wire drawing machines and can also be customized for other brands according to drawings or samples.
How is the service life of refurbished rings?
A properly refurbished ring can achieve approximately 80%-90% of the service life of a new ring, depending on substrate condition and refurbishment quality.
What are the advantages compared with hard chrome plating?
Tungsten carbide coating offers higher hardness (typically above HV1200), better wear resistance, and improved corrosion resistance, making it more suitable for high-speed wire drawing applications.
How to Order
Please provide the ring model, dimensions, drawings, or samples. HJK can provide customized tungsten carbide rings according to your equipment requirements.
HJK Tungsten Carbide Rings provide reliable wear protection, stable performance, and cost-effective solutions for modern wire drawing machines.
