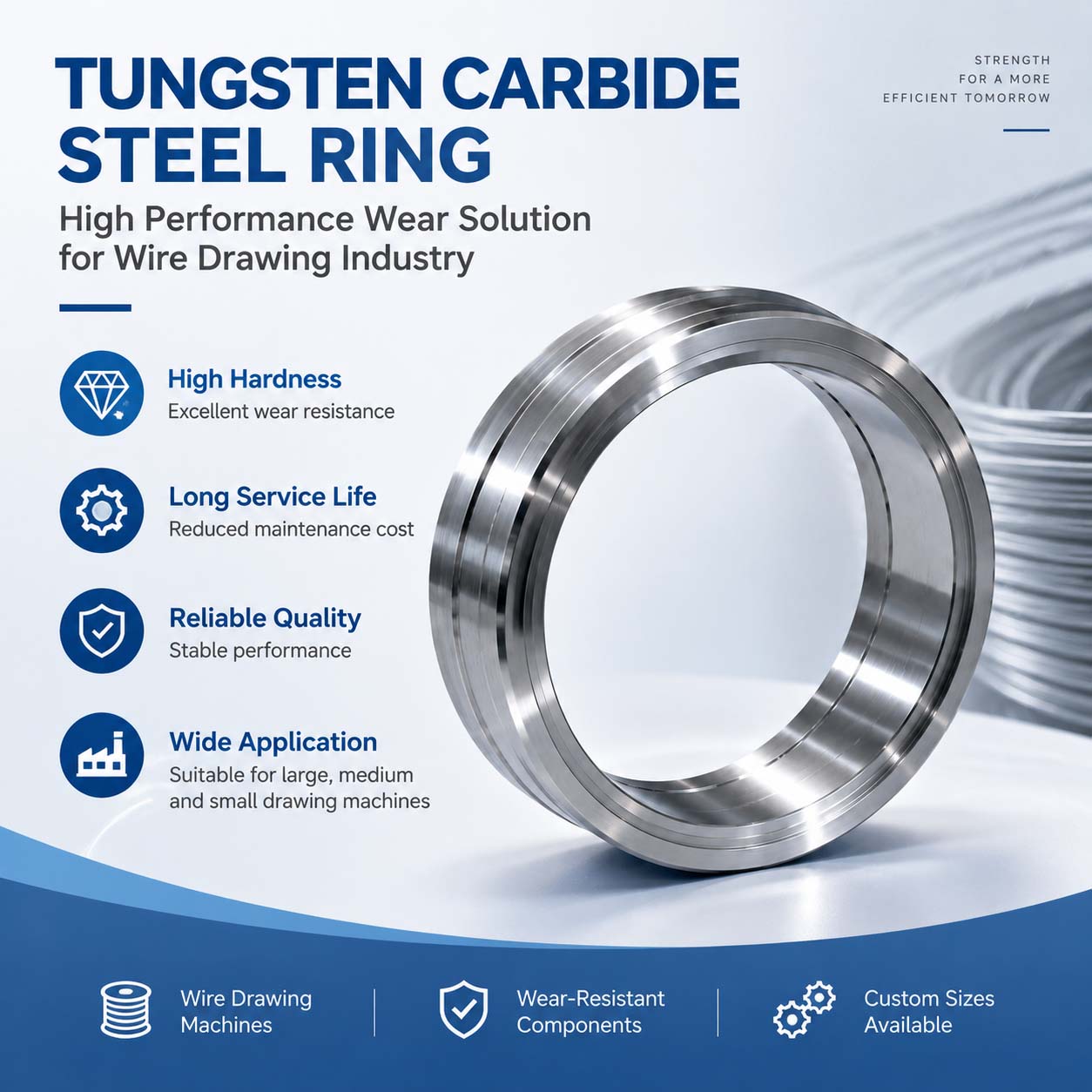

Tungsten Carbide Steel Ring

During metal wire drawing processes, capstans, guide wheels, and other wire-contact components are exposed to continuous friction and impact. Their wear resistance directly affects production efficiency and wire surface quality. Tungsten carbide steel rings provide an advanced wear-resistant solution for wire drawing machines by forming a high-hardness tungsten carbide coating on the surface through thermal spraying technology.

This article introduces the manufacturing process, key features, application areas, selection guidelines, maintenance methods, and frequently asked questions about tungsten carbide steel rings.

Process and Features of Tungsten Carbide Steel Ring

A tungsten carbide steel ring is not made entirely of tungsten carbide. Instead, a dense tungsten carbide coating is applied onto a steel substrate using advanced thermal spraying processes such as HVOF (High Velocity Oxygen Fuel) spraying or plasma spraying.

Key advantages include:

• High Hardness:
  The coating hardness can typically reach HV1100-1300, providing excellent resistance against abrasive wear.
• Strong Bonding Strength:
  The tungsten carbide coating has strong adhesion to the steel substrate, preventing peeling during high-load operation.
• Excellent Corrosion Resistance:
  The coating offers good chemical stability and can withstand lubricating and cooling fluids used in wire drawing processes.
• Repairable and Reusable:
  Worn rings can be refurbished through coating removal and re-spraying, reducing replacement costs.

Compared with traditional hardened steel rings or hard chrome plating, tungsten carbide coatings can significantly extend service life, especially in high-speed and heavy-load wire drawing applications.

Typical Applications

Tungsten carbide steel rings are widely used in various wire drawing equipment, including:

Wire Drawing Capstan (Tower Wheel)

Used in multi-pass wire drawing machines, capstans guide wire through different drawing stages. The tungsten carbide coating maintains groove accuracy, reduces vibration, and improves wire surface quality.

Guide Wheels and Wire Passing Rollers

Used for changing wire direction and controlling tension. The wear-resistant coating reduces friction and prevents scratches on the wire surface.

Drawing Drums

For direct-line wire drawing machines, tungsten carbide coated drums provide stable traction performance and extended service life.

Selection and Customization

When selecting a tungsten carbide steel ring, the following factors should be considered:

• Base Material:
  High-quality alloy steel or tool steel is commonly used to ensure strength and durability.
• Coating Thickness:
  A typical coating thickness is 0.15-0.3 mm. The correct thickness should be selected according to operating conditions.
• Dimensional Accuracy:
  Outer diameter, groove profile, and inner diameter should match the original equipment drawings. Precision grinding is usually required after coating.
• Surface Finish:
  The wire-contact surface generally requires a low roughness level (Ra ≤ 0.4 μm) to reduce friction.

Customized sizes and refurbishment services are available according to customer drawings or existing parts.

Maintenance Tips

Proper maintenance can maximize the service life of tungsten carbide steel rings:

• Maintain Proper Lubrication:
  Keep drawing lubricant clean and at the correct concentration to prevent abrasive particles from damaging the coating.
• Regular Inspection:
  Check the surface for scratches, cracks, or coating damage and repair problems at an early stage.
• Clean Wire Surface:
  Remove oxide scale and hard particles from wire materials before drawing to avoid impact damage.
• Proper Storage:
  Apply rust protection and store spare rings in a dry environment.
• Avoid Mechanical Impact:
  Use proper tools during installation and removal. Do not strike the coating surface directly.

Frequently Asked Questions

Will tungsten carbide coating peel off?

Under normal operating conditions, the coating has excellent bonding strength and is not easy to peel. Damage may occur due to improper surface preparation, excessive coating thickness, or abnormal impact loads.

How many times can a tungsten carbide ring be refurbished?

If the steel substrate remains in good condition without deformation or cracks, the ring can usually be repaired multiple times. The actual number depends on grinding allowance and remaining substrate thickness.

When should the ring be repaired or replaced?

Repair or replacement is recommended when deep wear grooves appear, the coating is worn through, or wire quality is affected by scratches or dimensional changes.

What is the difference between tungsten carbide and ceramic coatings?

Tungsten carbide coatings provide a good balance of hardness, toughness, and impact resistance, making them suitable for wire drawing capstans and rollers. Ceramic coatings offer higher hardness and corrosion resistance but may have lower impact resistance.

What types of wire are suitable?

Tungsten carbide steel rings are suitable for drawing steel wire, copper wire, aluminum wire, alloy wire, stainless steel wire, and other metal materials. The final selection depends on drawing speed, material hardness, and lubrication conditions.

Conclusion

Tungsten carbide steel rings are an ideal wear-resistant solution for modern wire drawing equipment. With high hardness, strong adhesion, corrosion resistance, and repairability, they help improve production efficiency, reduce downtime, and extend the service life of critical drawing machine components.
