Coating Service Overview
In high-speed manufacturing equipment such as face mask production lines and wire drawing machines, the wear resistance of rollers and guide wheels directly affects production efficiency and product quality.
By applying advanced thermal spray technologies, including ceramic coating and tungsten carbide coating, metal components can achieve significantly improved wear resistance, corrosion resistance, and service life.
This article introduces common industrial wear-resistant components, including mask machine rollers, ceramic coated guide rollers, tungsten carbide tower wheels, and their applications, selection methods, and maintenance tips.
Common Wear-Resistant Components and Coating Technologies
Industrial wear-resistant parts usually use metal substrates combined with surface treatment technologies such as thermal spraying, plasma spraying, and HVOF spraying to create high-hardness protective coatings.

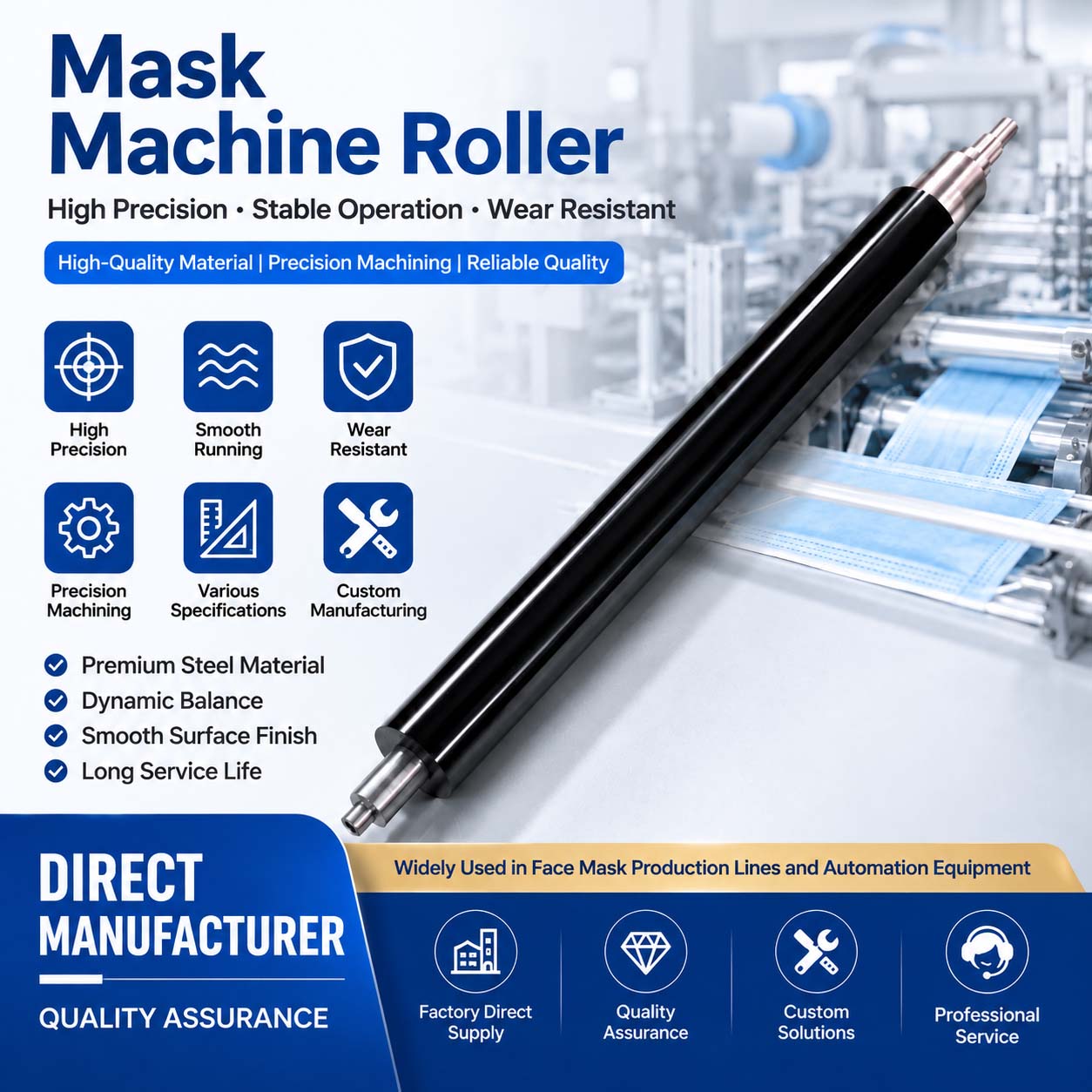

Mask Machine Roller
Mask machine rollers are mainly used for conveying and pressing nonwoven fabric and melt-blown fabric during mask production.
Key requirements:
- Smooth surface finish
- Anti-sticking performance
- High wear resistance
Common surface treatments include ceramic coating and PTFE (Teflon) coating, which help reduce material adhesion and improve production stability.
Ceramic Coated Aluminum Guide Roller
Ceramic coated guide rollers use aluminum alloy as the base material with a ceramic surface layer.
Advantages:
- Lightweight structure
- Excellent wear resistance
- Low friction performance
They are widely used in wire and cable equipment, especially for tension control and high-speed wire guidance.
Tungsten Carbide Tower Wheel
Tungsten carbide tower wheels are critical components in wire drawing machines.
A tungsten carbide coating is applied to the steel base through thermal spraying, providing:
- Extremely high hardness
- Excellent abrasion resistance
- Long service life under high-speed friction
They are suitable for processing steel wire, alloy wire, and other high-strength materials.
Tungsten Carbide Steel Ring
Tungsten carbide steel rings are commonly used in wire drawing drums and guide systems.
The inner hole or outer surface is coated with tungsten carbide to improve edge wear resistance, reduce wire damage, and extend replacement intervals.
Wire Drawing Machine Steel Ring
Similar to tungsten carbide steel rings, wire drawing machine steel rings can be customized with different base materials and coating thicknesses according to wire diameter, material type, and operating conditions.
Coated Guide Roller
Coated guide rollers refer to rollers treated with protective surface coatings. Depending on working conditions, coatings can include:
- Ceramic coating
- Tungsten carbide coating
- Alloy powder coating
Applications and Selection Guide
Selecting Rollers for Mask Making Machines
Mask machine rollers require high surface smoothness and anti-stick performance.
Selection considerations:
- Roller diameter and length must match equipment specifications.
- Chromium oxide ceramic coating or tungsten carbide coating can improve wear resistance.
- Dynamic balancing grade of G2.5 or higher is recommended for high-speed operation.
Wire Drawing Guide Rollers and Tower Wheels
Wire drawing components continuously experience high-speed friction from metal wires. The key selection factors are coating hardness and bonding strength.
- Tungsten carbide coating can reach hardness above HV1200, suitable for hard wire materials.
- Ceramic coated aluminum rollers are ideal for copper and aluminum wires, helping prevent surface scratches.
- Tower wheel groove dimensions should match wire diameter, and low surface roughness helps reduce wire breakage.
Steel Ring Components
For tungsten carbide steel rings and wire drawing steel rings, attention should be paid to:
- Inner hole tolerance
- Coating thickness uniformity
- Surface finish
Proper design prevents uneven wear and protects wire quality.
Maintenance and Service Life
Proper maintenance can significantly extend the service life of coated rollers and guide wheels:
- Regularly inspect coatings for cracks, peeling, or surface damage.
- Clean coated surfaces with soft materials and neutral solvents.
- Keep components in a dry environment to prevent substrate corrosion.
- Measure groove wear of wire drawing guide rollers regularly. Replacement or recoating is recommended when wear exceeds the allowable limit.
Actual service life depends on operating conditions, including:
- Wire speed
- Tension force
- Lubrication conditions
- Material hardness
Keeping maintenance records helps optimize replacement cycles and reduce downtime.
Frequently Asked Questions
1. What should I do if the coating on a mask machine roller peels off?
Minor damage can be repaired locally. For large-area coating failure, professional recoating is recommended.
2. Tungsten carbide tower wheel vs ceramic tower wheel: which is better?
Tungsten carbide provides higher hardness and is suitable for hard wires. Ceramic coatings offer lower friction and electrical insulation, making them suitable for high-speed fine wires.
3. Can ceramic coated aluminum guide rollers be used in humid environments?
The ceramic layer has good corrosion resistance, but the aluminum substrate should still be protected from oxidation through proper sealing and maintenance.
4. Can worn wire drawing steel rings be repaired?
Yes. If the base material remains intact, the old coating can be removed and a new wear-resistant coating can be applied.
5. When should a guide roller be replaced?
Replacement is recommended when groove wear, wire scratches, or increased wire breakage occurs.
6. Are customized rollers and guide wheels available?
Yes. Dimensions, materials, and coating types can be customized according to equipment drawings or customer samples.
