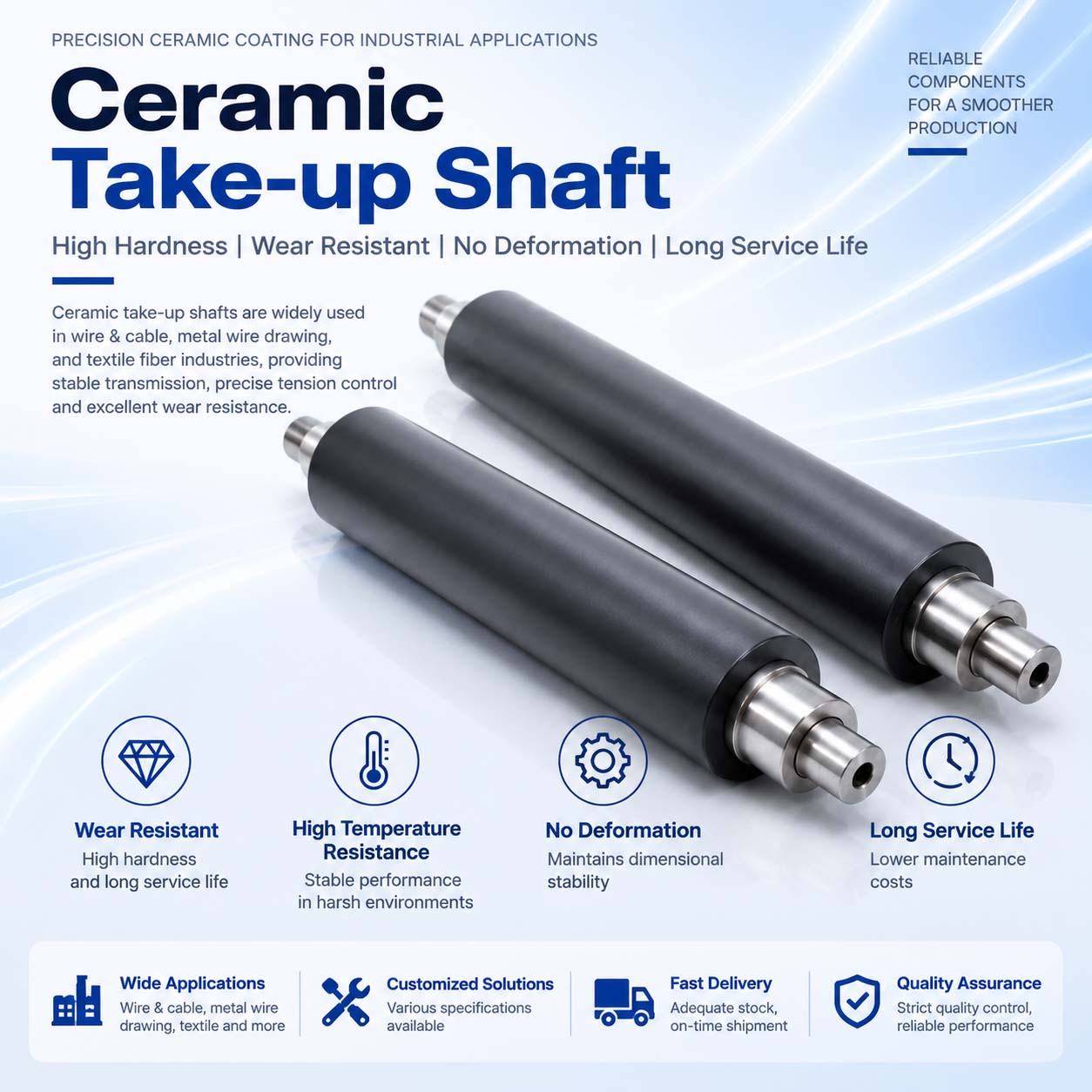

Ceramic Take-Up Shaft

In wire and cable manufacturing, metal wire drawing, and textile fiber processing, the take-up shaft (also known as a haul-off shaft or pulling shaft) is a key component for stable material transmission and precise tension control.

Traditional metal take-up shafts may suffer from wear, corrosion, and surface damage during high-speed operation, which can cause wire scratches, breakage, and unstable production.

The Ceramic Take-Up Shaft uses advanced ceramic coating technology, applying zirconia (ZrO₂), alumina (Al₂O₃), and other ceramic materials onto a metal substrate. The ceramic surface provides high hardness, excellent smoothness, wear resistance, and corrosion protection, making it an ideal solution for modern high-speed wire processing lines.

Structure and Material Features

A ceramic take-up shaft typically consists of a metal shaft core and a ceramic working layer.

The shaft core is usually made of high-strength alloy steel or stainless steel to provide excellent mechanical strength and rigidity.

The working surface is coated with ceramic materials through advanced thermal spray processes, such as plasma spraying or high-velocity oxygen fuel (HVOF) spraying. The ceramic powder is melted and deposited onto the shaft surface, forming a dense and durable protective coating.

Common ceramic materials include:

Zirconia Ceramic (ZrO₂)

• Excellent toughness
• Strong thermal shock resistance
• Suitable for high-speed and high-temperature applications
• Smooth surface finish, reducing friction and wire damage

Alumina Ceramic (Al₂O₃)

• Extremely high hardness
• Excellent wear resistance
• Cost-effective
• Suitable for medium-speed and clean operating environments

Composite Ceramic

Materials such as zirconia-toughened alumina (ZTA) combine high hardness with improved toughness for special industrial requirements.

Typical coating specifications:

• Coating thickness: 0.2–0.5 mm
• Bond strength: >40 MPa
• Hardness: Up to HV1000+
• Service life: Usually several times longer than conventional chrome-plated shafts

Main Applications

Wire Drawing and Stranding Machines

During copper, aluminum, and alloy wire drawing processes, the take-up shaft smoothly pulls and transfers wire from the drawing die to the winding system.

The ceramic surface provides low friction, reduces wire vibration, and prevents surface scratches, especially for fine wires with diameters from approximately 0.02–0.5 mm.

Enameling and Winding Machines

For enamel wire production, surface quality is critical. Ceramic take-up shafts help protect the enamel coating and reduce surface damage.

In winding machines, the shaft works with tension control systems to ensure accurate and uniform coil arrangement.

Cable and Optical Fiber Equipment

Used in cabling machines and extrusion lines. The corrosion-resistant ceramic surface can withstand contact with filling compounds, cooling fluids, and other industrial media, ensuring long-term stable operation.

Selection and Installation Recommendations

Selection Factors

When selecting a ceramic take-up shaft, consider:

Wire Material and Diameter

• Zirconia ceramic coatings are recommended for softer materials such as pure copper due to better toughness.
• Alumina ceramic coatings are suitable for applications requiring higher hardness and wear resistance.

Operating Speed

For high-speed applications above 1000 m/min, zirconia coatings are often preferred due to lower friction and better thermal stability.

Working Environment

Humid or corrosive environments may require fully coated surfaces or high-density ceramic coatings with suitable sealing protection.

Shaft Dimensions

Shaft diameter, length, and mechanical strength should be selected according to equipment space and wire tension requirements to ensure sufficient rigidity and prevent deflection.

Installation and Maintenance

Installation Recommendations

• Inspect the ceramic surface before installation to ensure there are no cracks, chips, or surface defects.
• Use proper fitting methods such as thermal fitting or press fitting. Avoid direct impact on the ceramic coating.
• Ensure accurate alignment with guide wheels and capstan wheels to prevent uneven wear.

Maintenance Guidelines

• Clean the shaft surface regularly with a soft cloth or brush. Avoid metal scrapers.
• Inspect coating wear regularly. If the substrate becomes exposed, repair or replacement is recommended.
• Maintain proper bearing lubrication to ensure smooth rotation.
• Store shafts vertically in a dry environment to prevent impact damage or coating deterioration.

Frequently Asked Questions

Will the ceramic coating peel off?

Under normal operation and proper installation, high-quality ceramic coatings have strong bonding strength and are not easily detached. Excessive impact or overload conditions may cause local coating damage.

Can ceramic take-up shafts be used in high-temperature environments?

Yes. Zirconia coatings can typically withstand continuous working temperatures around 500°C and short-term exposure up to approximately 800°C, depending on the application conditions.

How can I determine when the shaft needs replacement?

Replacement is recommended when:

• Deep wear grooves appear
• Surface roughness increases and damages the wire
• Coating peeling exceeds acceptable levels
• Wire quality becomes unstable

What are the advantages compared with chrome-plated shafts?

Ceramic take-up shafts provide:

• Higher hardness
• Better wear resistance
• Lower friction
• Stronger corrosion resistance
• Longer service life

In many applications, ceramic-coated shafts can last more than three times longer than traditional chrome-plated shafts.

Can non-standard sizes be customized?

Yes. Shaft diameter, length, coating material, and surface specifications can be customized according to customer drawings or samples.

Which industries use ceramic take-up shafts?

Ceramic take-up shafts are widely used in:

• Wire and cable manufacturing
• Metal wire processing
• Textile and synthetic fiber production
• Optical fiber and cable equipment
• Drawing, stranding, enameling, and winding machinery

Customized Ceramic Take-Up Shaft Solutions

We provide customized ceramic coated take-up shafts with zirconia, alumina, and composite ceramic coatings for high-speed industrial applications.

Through advanced thermal spray technology and precision machining, ceramic take-up shafts deliver excellent wear resistance, low friction, corrosion protection, and long-term stable performance.
